The engine brand uses: YUCHAI, WEICHAI, SHANGCHAI, MTU, SHANGYAN, CUMMINGS, PERKINGS, VOLV, etc.
The alternator brand uses: LEROY SOMER, MARATHON, ENGE, GERALL brushless synchronous generators, and with salient pole integral rotor technology, H-class insulators, steel plate body, excellent performance, stable and reliable operation.
The controller uses processing techniques integrating digital, intelligent and network techniques which can carry out functions including auto start/stop, data measure, and alarming. The controller uses LCD, optional Chinese and English display interface with operation easy and reliable. It can be widely used in all types of generator automatic control systems for compact structures, advanced circuits, simple connections and high reliability.
 |  |
|---|
Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER | ||
KVA | KW | KVA | KW | ||||
ZK-W1250K | 1250 | 1000 | 1136 | 909 | KTA38-G9 | LSA 50.2 M6 | 6110 |
Engine： | KTA38-G9 |
TYPE: | “V” Type 12 Cylinder,4-cycle, water cooled, turbo |
STRUCTURE: | Integration module structure |
COOLING SYSTEM: | Water cooled |
Filter: | WEICHAI Fleet guard series filter |

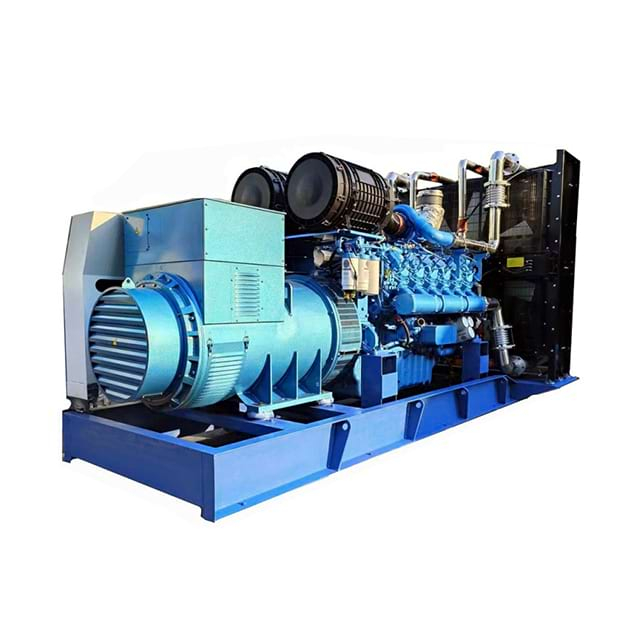

1. Engine. It is powered by a brand new original WEICHAI water-cooled diesel engine.
2. Alternator. Copper brushless AC synchronous alternator 3 phase with IP23 and H insulation class.

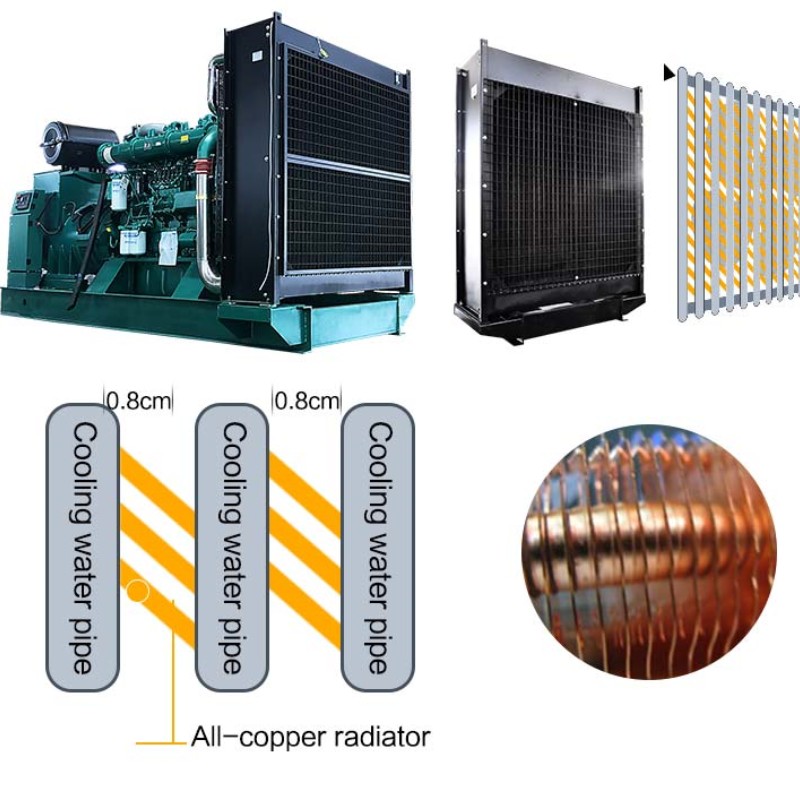

3. Cooling System. Suitable for environments of 40°C-50°C radiator water tank, belt-driven cooling fan with safety cover.
4. Control System. DELIXI or CHINT brand power generation output air switch, standard control panel with SmartGen brand AMF controller module for automatic start and stop, supports eight languages worldwide, 12V/24V DC electric start system with battery charger.
5. Base Frame. Heavy-duty steel base frame ensures that it is strong and durable, with coat paint to prevent corrosion.
6. Filtration System. Dry air filter, fuel filter, lubricating oil filter.
7. Short Circuit Protection. Moulded case circuit breaker.
8. Specialized muffler exhaust system with flexible connectors and bellows.
9. Original engine and alternator technical documents, generator set manual, test report, etc.
10. CE, ISO9001 approved.
1. ATS control cabinet.
2. With remote control, remote measurement and remote communication function unit control panel.
3. Alarm protection, auto start function, and unit control screen.
4. Mobile trailer type with cabinet power station; silent portable trailer type with cabinet power station.

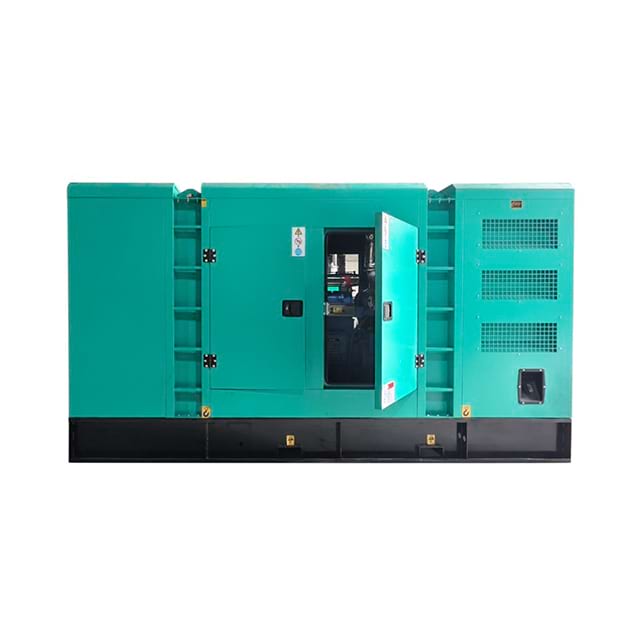

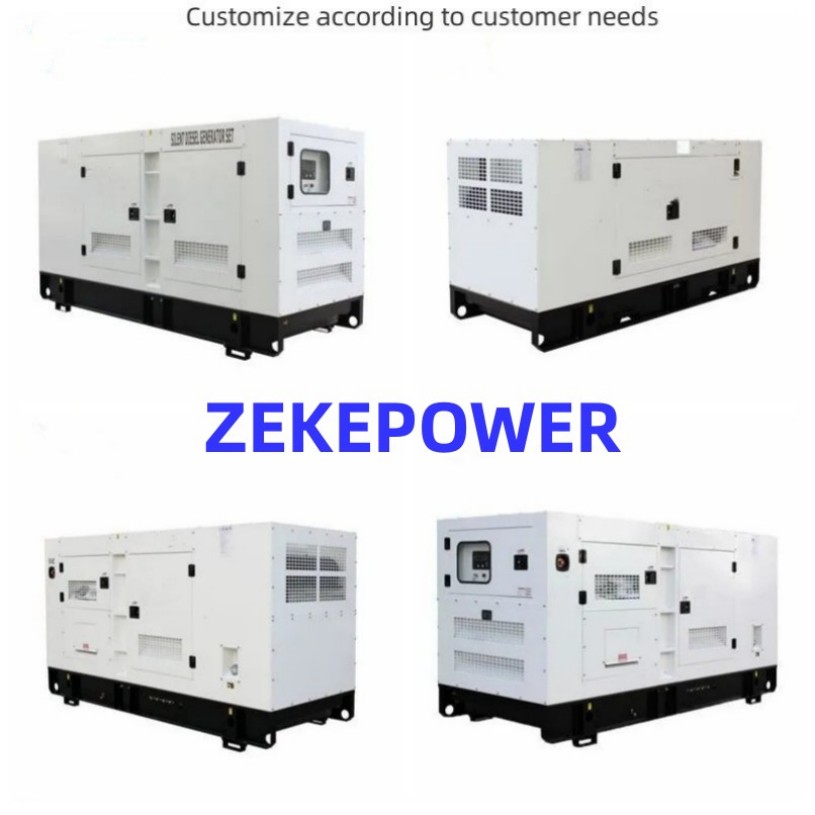

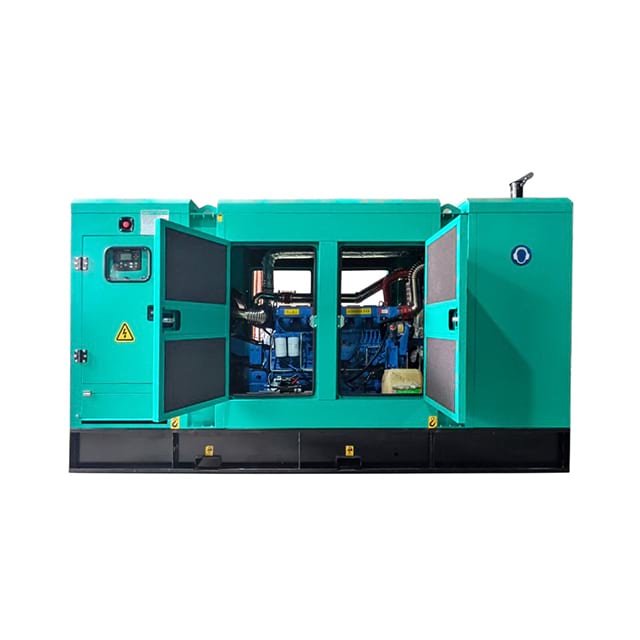

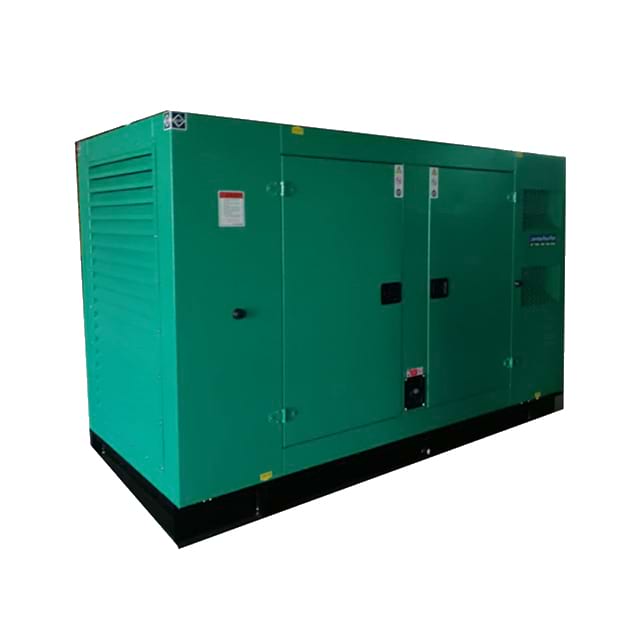

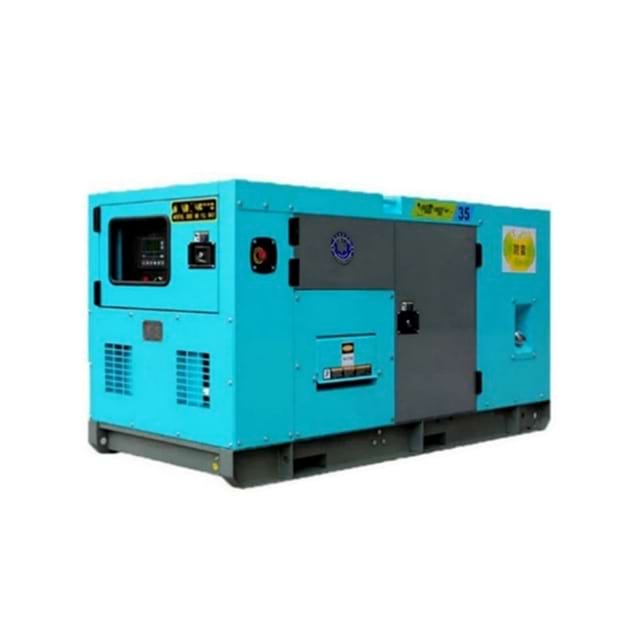

5. Rainproof type with cabinet genset; silent type generator set; container type generator.
6. Oil, diesel, water jacket, anti-condensation heater.
7. Free standing daily fuel tank 100L-1000L; integrated base fuel tank 8/12/24/48 hours.
