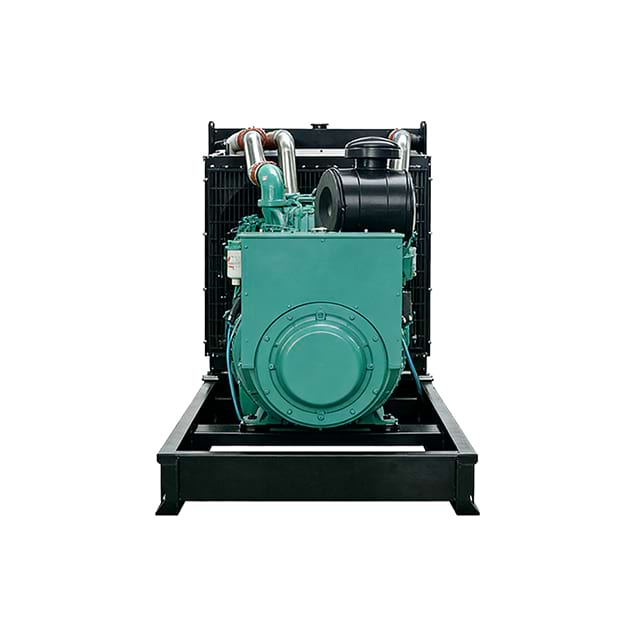

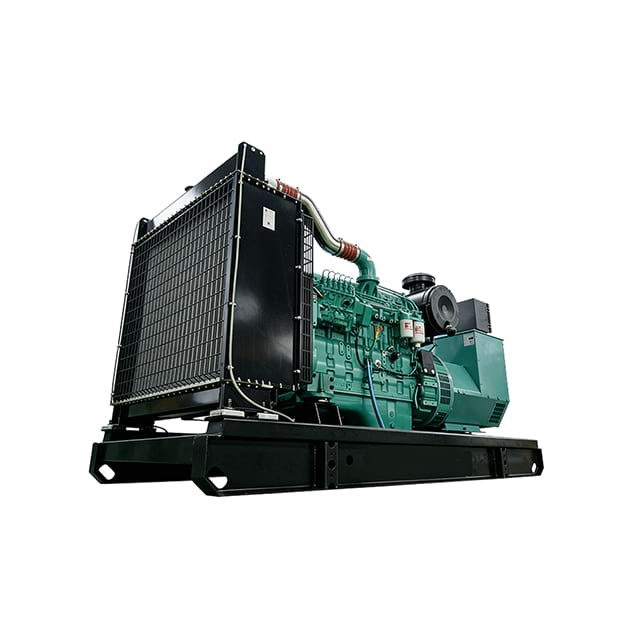

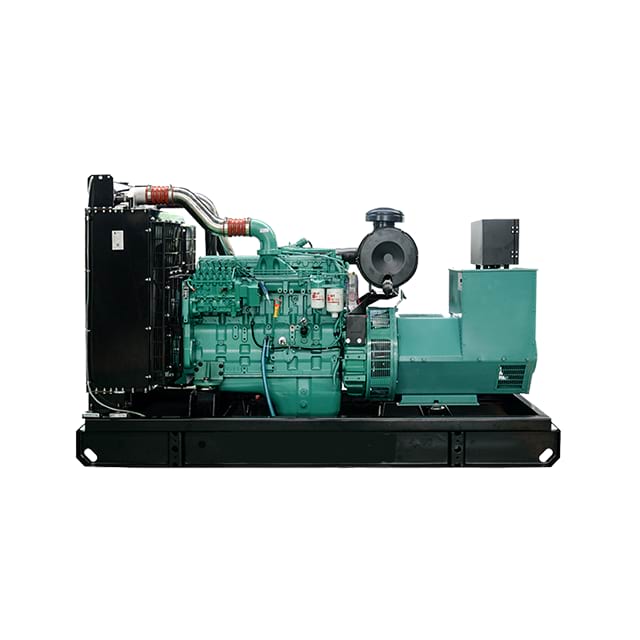

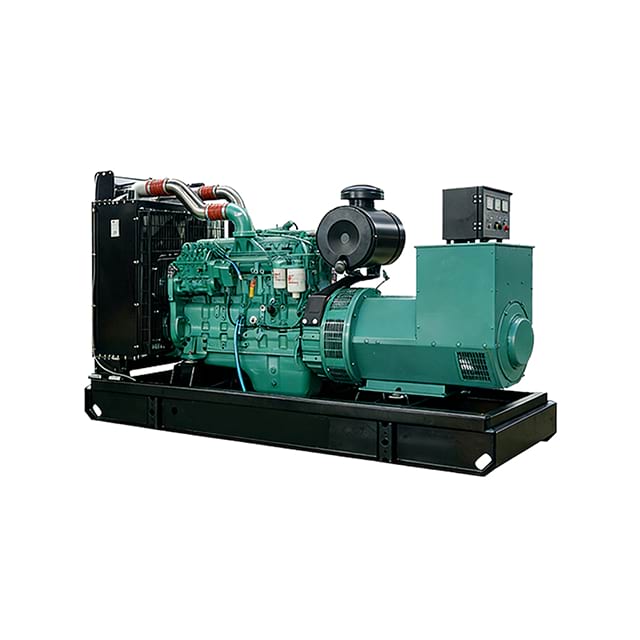

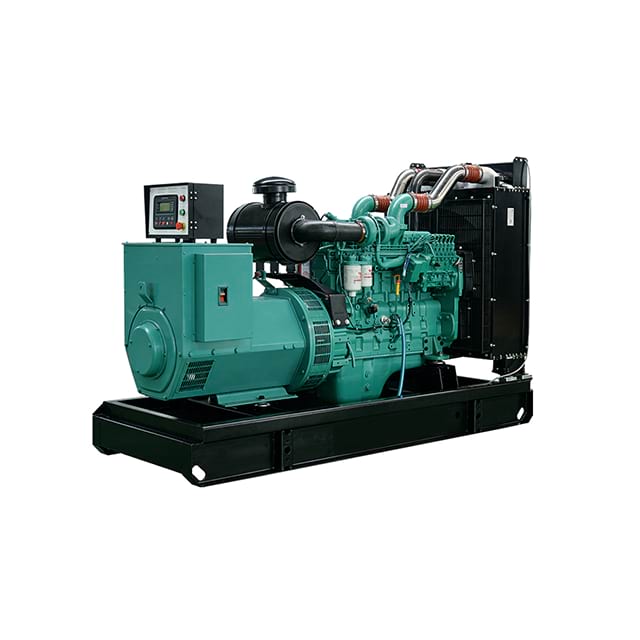

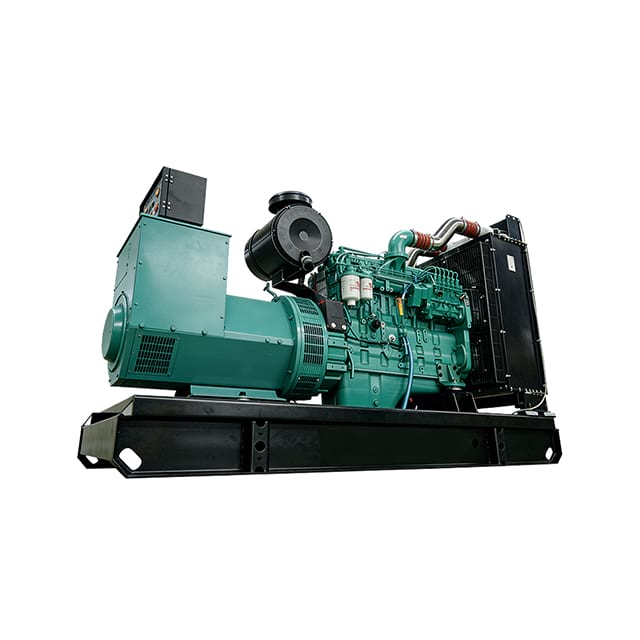

Equipped with the classic Chongqing Cummins NTA855-G1A engine, as an industrial-grade power benchmark model, the 6-cylinder inline structure combined with a 14L large displacement design ensures stable and abundant power output, enabling it to easily handle the rated load of 208kW and short-term overload requirements.
The unit size is 3100×972×1720mm, with a weight of 3250kg. Compared to models in the same power range, it has a more compact layout, requiring less installation space and can be flexibly deployed in indoor machine rooms, outdoor construction sites, and other scenarios.
Equipped with brushless synchronous generators and AVR automatic voltage regulation system, the steady-state voltage adjustment rate is ≤±1%, and the voltage fluctuation rate is ≤0.5%. It can precisely adapt to loads with strict power supply quality requirements, such as precision equipment and production lines. At the same time, it has four safety protection functions for overload, over-temperature, undervoltage, and phase loss, which can automatically alarm and shut down to prevent equipment damage due to faults and ensure power supply safety.
The entire machine is made of high-strength steel, and the engine cylinder block is made of alloy cast iron. It can withstand high temperatures, high humidity, dust, etc., and can operate stably within the temperature range of -12℃ to 40℃ and at an altitude of 2000m. It is equipped with a honeycomb double-layer muffler and an efficient water cooling system, which has fast heat dissipation and low noise (LP7m ≤ 98dB), balancing the stability of operation and environmental adaptability.
Parameter Name | Specific values / configurations |
Rated power | 200kW |
Standby Power | 220kW (110% of the rated power) |
Unit Dimensions (L×W×H) | 2999×1261×1919mm |
Unit Weight | 2500kg |
Starting Method | DC24V DC Electric Starting (Maintenance-free Storage Battery) |
Number of Cylinders / Arrangement | 6-Cylinder In-line (6L) |
Displacement | 14L |
Intake Method | Turbocharged + Intercooled |
Bore × Stroke | 140mm×152mm |
Fuel System | PT Fuel System (Precise fuel supply for full combustion) |
Cooling Method | Forced Water Cooling (Closed Cycle) |
Generator Type | Brushless Three-Phase AC Synchronous Generator |
Rated Voltage | 400/230V (Three-Phase Four-Wire) |
Rated Frequency | 50Hz |
Power Factor | 0.8 (Lagging) |
Insulation Class | Class H (High temperature resistance, long service life) |
Voltage Regulation Method | AVR Automatic Voltage Regulation (Steady-state voltage regulation rate ≤±1%) |
Application
1. What is the minimum order quantity for this product?
1 pcs.
2. What are your payment terms?
30% TT as deposit,70% TT before Shipment.
3. Where is your loading port?
Shenzhen, China.
4. Can we use the customer's own brand name?
We can act as your OEM manufacturer, provided that we obtain the authorization of your brand.
