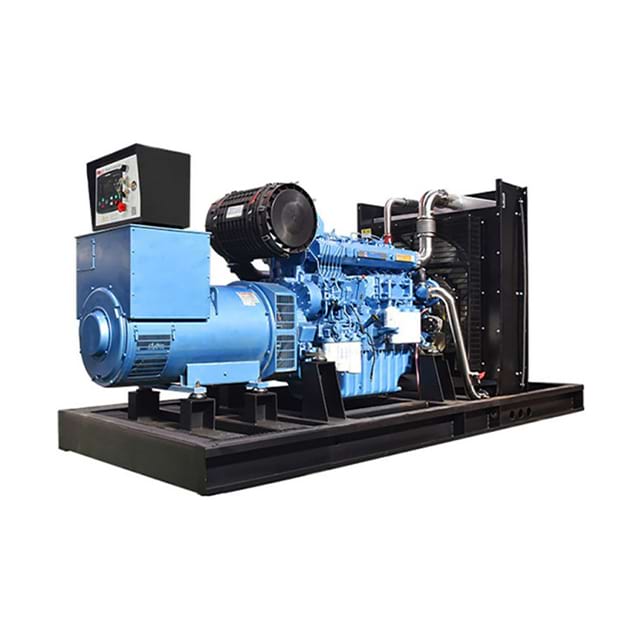

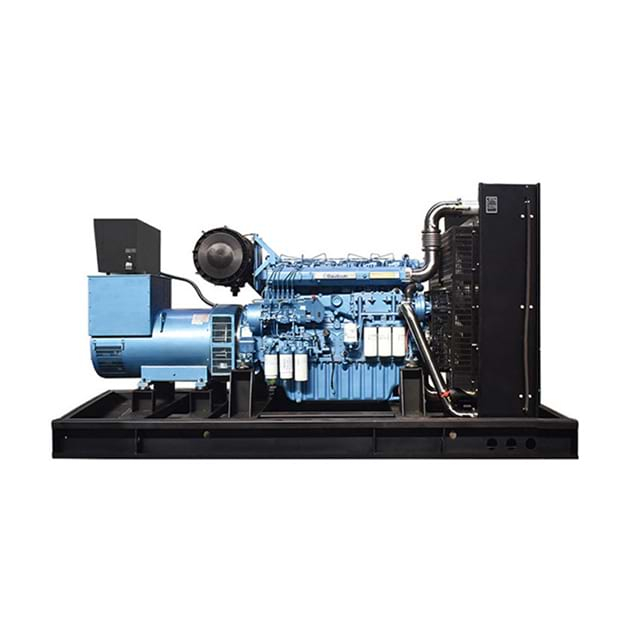

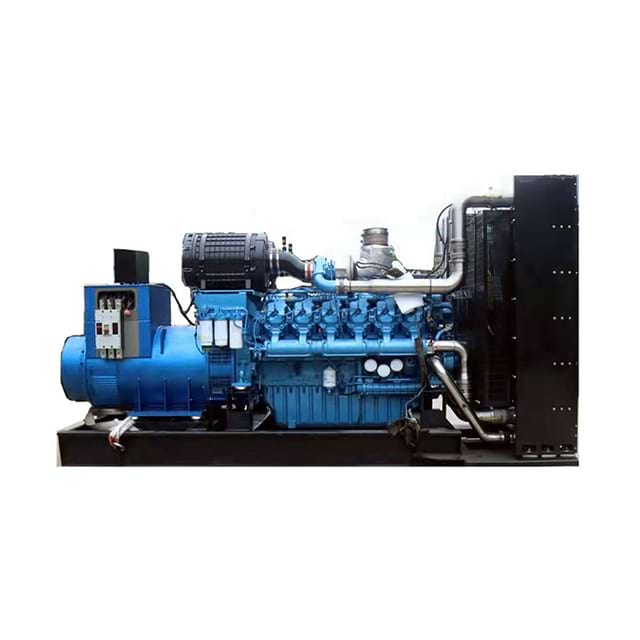

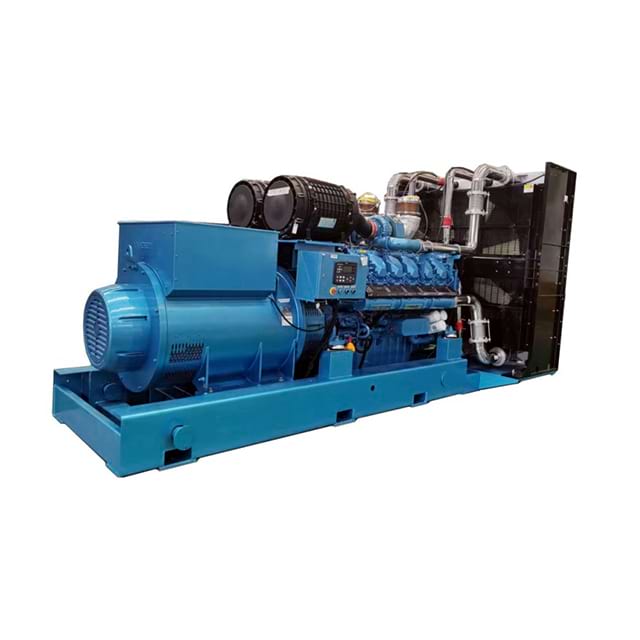

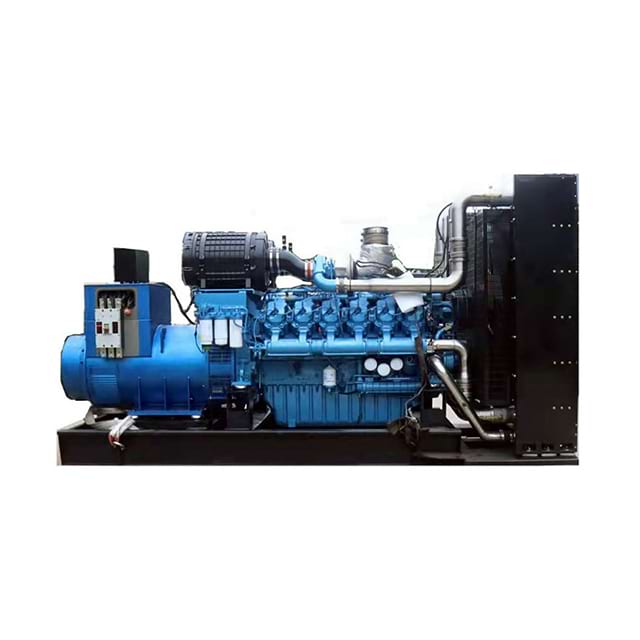

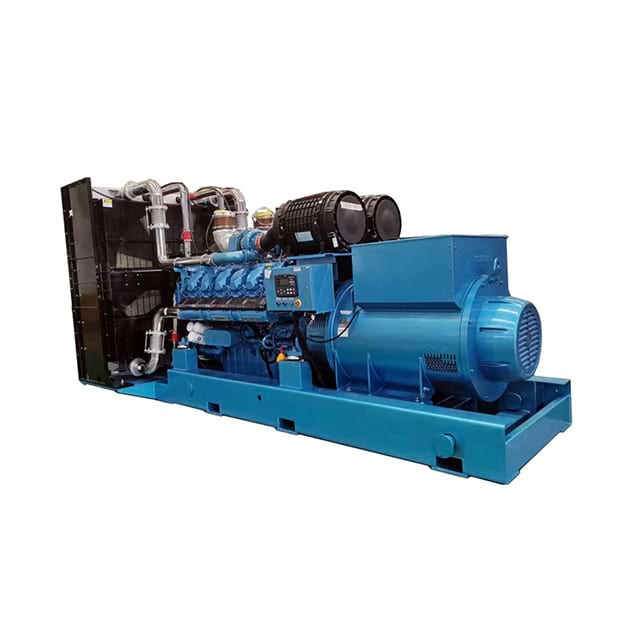

600KW 750KVA 720KW 900KVA 800KW 1000KVA Open Type Weichai Engine Industrial Power Diesel Generator Set With High Quality

Weichai's 800KW diesel generator uses hardcore technology to create a comprehensive power supply solution, highlighting its core advantages. Equipped with the independent WP17 series engine, high-pressure common rail injection system combined with turbocharged intercooling technology, the thermal efficiency exceeds 45%, and the fuel consumption rate is as low as 180g/kWh, making it more fuel-efficient under heavy load conditions. The high-strength cylinder design ensures a long lifespan of 30000 hours, adapts to a wide temperature range of -15 ℃ to 50 ℃, and provides stable power generation in harsh environments.

Leading in intelligent control capability, fully automatic start stop response within 10 seconds, supporting parallel connection of 16 units and 5G remote monitoring, and providing accurate protection for 63 fault warnings. Voltage fluctuation rate ≤ ± 1%, meeting the precise electrical needs of data centers, hospitals, and other facilities.

Balancing environmental protection and noise reduction, meeting national emission standards of Grade III or above, with a two-stage noise reduction system that reduces noise levels to ≤ 75dB (A). Compared to imported models, it has higher cost-effectiveness, lower maintenance costs, and faster supply of accessories, making it the preferred model for industrial production and emergency support

Now just as a sample, This is just an example for reference only. Please verify and confirm with the business regarding the actual situation!

Standard Configurations

1. Engine. It is powered by a brand new original WEICHAI water-cooled diesel engine.

2. Alternator. Copper brushless AC synchronous alternator 3 phase with IP23 and H insulation class.

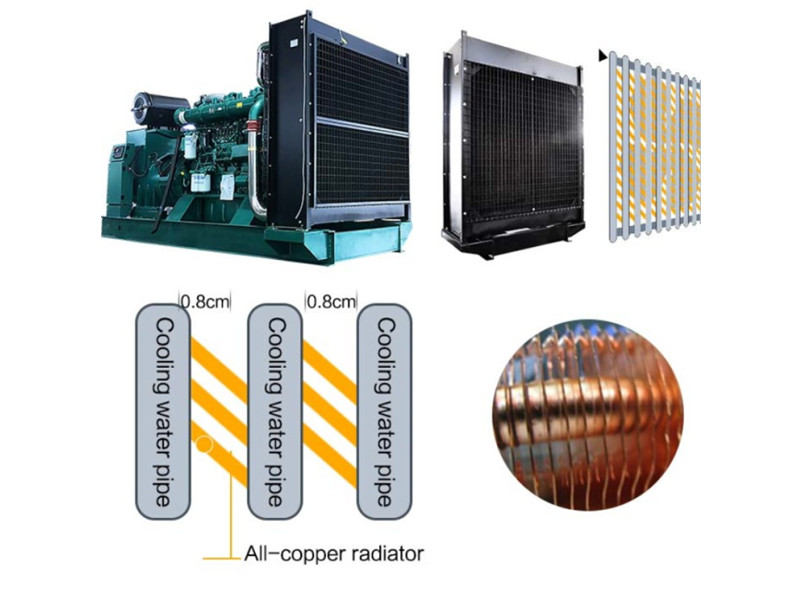

3. Cooling System. Suitable for environments of 40°C-50°C radiator water tank, belt-driven cooling fan with safety cover.

4. Control System. DELIXI or CHINT brand power generation output air switch, standard control panel with SmartGen brand AMF controller module for automatic start and stop, supports eight languages worldwide, 12V/24V DC electric start system with battery charger.

5. Base Frame. Heavy-duty steel base frame ensures that it is strong and durable, with coat paint to prevent corrosion.

6. Filtration System. Dry air filter, fuel filter, lubricating oil filter.

7. Short Circuit Protection. Moulded case circuit breaker.

8. Specialized muffler exhaust system with flexible connectors and bellows.

9. Original engine and alternator technical documents, generator set manual, test report, etc.

10. CE, ISO9001 approved.

Technical Parameters
