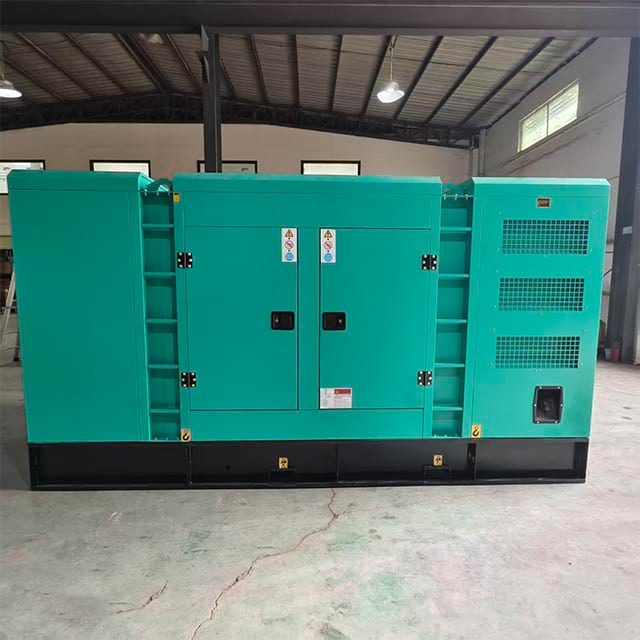

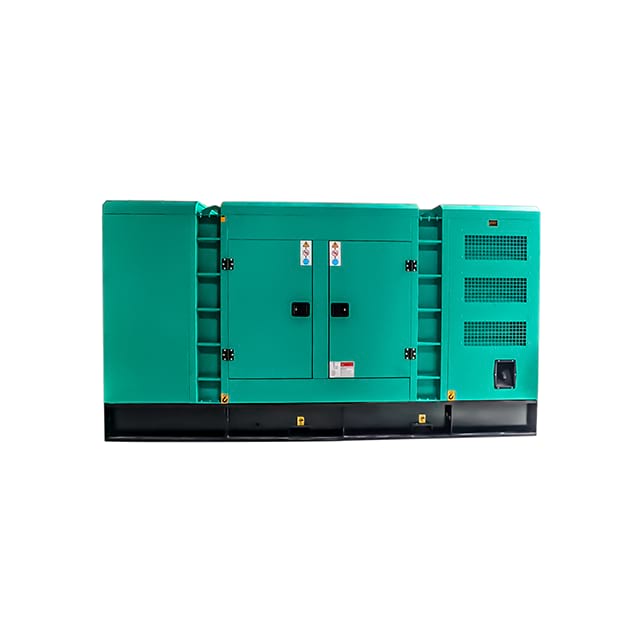

The 200KW silent diesel generator set developed by ZEKE Power is a high-end power solution for B2B users with stringent requirements for noise control, operational reliability and spatial layout. Powered by the market-proven Yuchai YC6MK350L-D20 diesel engine—jointly developed with top international technical institutions including Germany’s FEV and Europe’s AVL—this genset integrates a high-efficiency brushless alternator, intelligent control system and patented silent technology. With a prime power of 200kW and standby power of 220kW, it features an integrated silent enclosure design that limits noise to ≤75dB(A) at 7 meters, making it a perfect backup and main power source for noise-sensitive scenarios. Certified with CE, the unit is engineered for long-term stable operation, and its fuel-efficient and low-maintenance characteristics effectively reduce operational costs for industrial, commercial and municipal B2B clients.
The self-developed original Yuchai YC6MK350L-D20 engine has been verified by millions of units in real market operating conditions, boasting a large market occupancy and outstanding reputation in the power generation industry. The 6-cylinder in-line structure with 10.34L displacement ensures strong power output and stable performance, while the closed water circulation cooling system maintains optimal working temperature even under high loads.
Equipped with advanced four-valve technology, an industry-leading high-pressure common rail fuel system and a Honeywell high-efficiency turbocharger, the genset achieves precise fuel metering and ultra-fine atomization, with combustion efficiency leading its class. The 57.2L/kW·h fuel consumption rate at 100% load significantly cuts fuel costs for long-term operation, aligning with B2B users’ demand for cost-controllable power solutions.

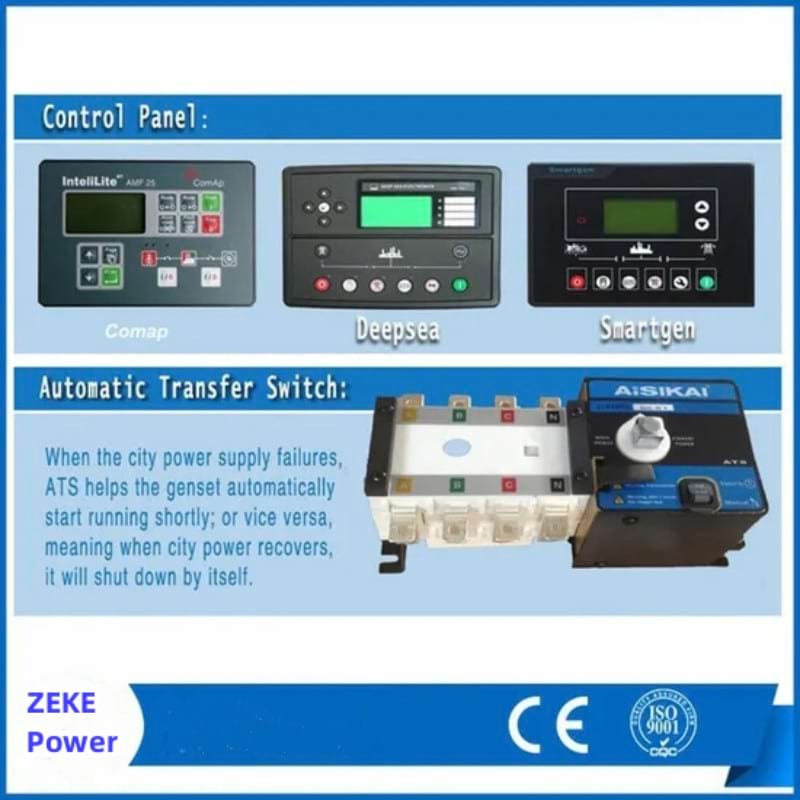

Fitted with a digital electronic control system and professional intelligent instruments, the unit supports remote control and monitoring, automatic paralleling and real-time health status tracking. It is equipped with ATS (Automatic Transfer Switch) from Deepsea/Smartgen, which enables automatic start when city power fails and automatic shutdown when power recovers, ensuring uninterrupted power supply. The built-in automatic fault protection function effectively prevents damage from overload, overvoltage and other abnormal conditions.
Adopting optimized combustion and intake-exhaust noise reduction technologies, the overall noise is controlled at ≤75dB(A), meeting the strict noise standards of hospitals, high-end residential areas and other sensitive scenarios. The silent enclosure is processed with anti-rust and anti-corrosion technology, making it suitable for both indoor installation and outdoor installation with shading, and the high-efficiency cooling system ensures full power output even under high ambient temperatures.

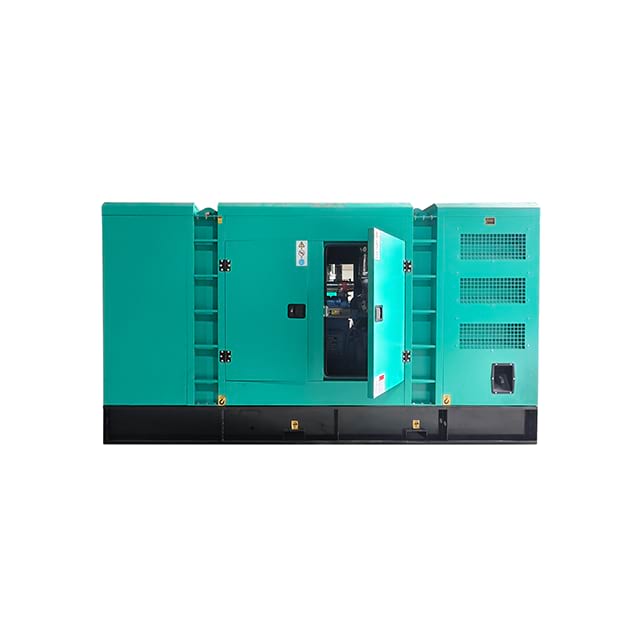

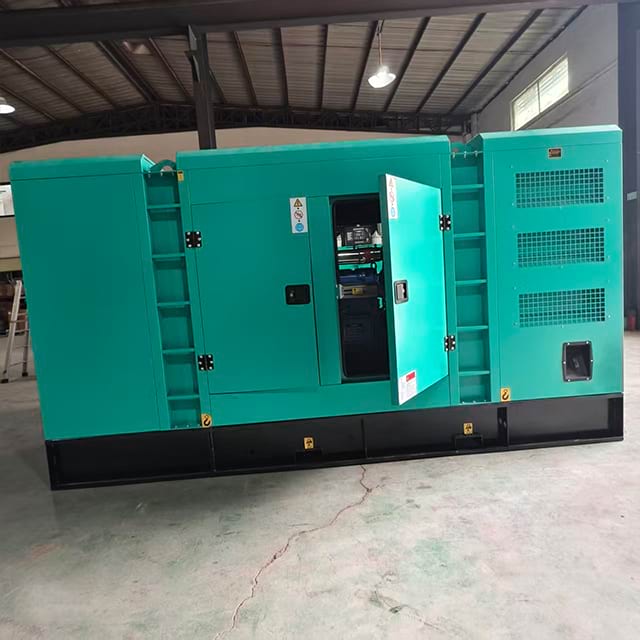

The silent enclosure is designed with large side access doors, providing ample maintenance space for daily inspection, servicing and overhaul—greatly improving operational and maintenance efficiency for B2B users. The unit’s compact dimensions (2900×1197×1599mm) and reasonable weight (2185kg) make it easy to install and transport, and the modular design allows flexible matching with different power supply systems.
 |  |
Category | Parameter Name | Specific Value/Configuration |
Unit Parameters | Prime Power | 200kW |
Standby Power | 220kW | |
Dimensions (L×W×H) | 2900×1197×1599mm | |
Weight | 2185kg | |
Starting Method | DC24V Electric Start (Maintenance-free Lead-acid Battery) | |
Noise Level (LP7m) | ≤75dB(A) | |
Engine Parameters | Engine Model | Yuchai YC6MK350L-D20 |
Cylinders/Arrangement | 6 Cylinders, In-line | |
Displacement | 10.34L | |
Cooling Method | Closed Water Circulation Cooling | |
Fuel Consumption (100% Load) | 57.2L/kW·h | |
Generator Parameters | Generator Type | Brushless Three-phase AC Synchronous Generator |
Rated Voltage | 400/230V (Customizable) | |
Rated Frequency | 50Hz | |
Power Factor | 0.8 (Lagging) | |
Insulation Class | Class H | |
Voltage Regulation | AVR Automatic Voltage Regulation |

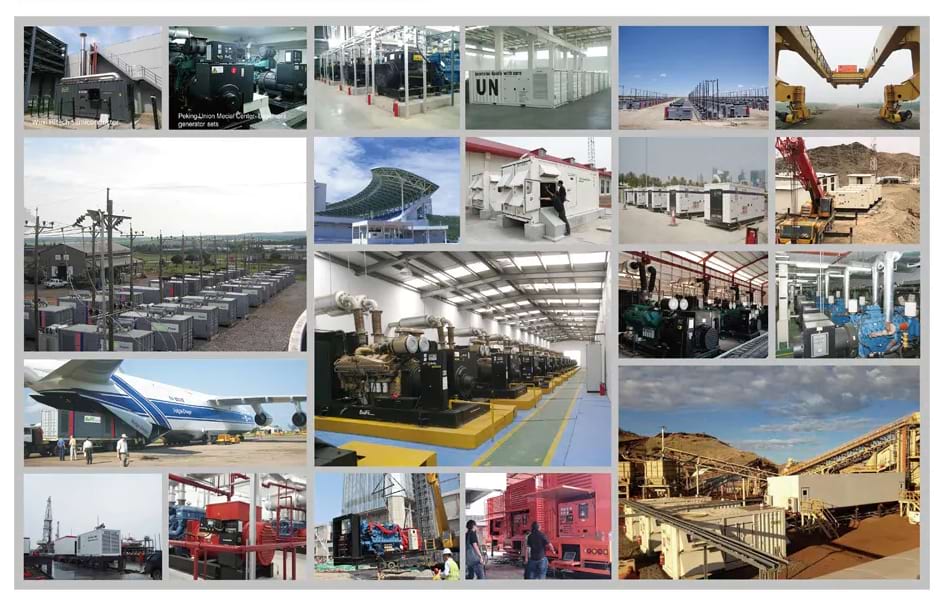

This genset is specially designed for B2B scenarios with strict noise and reliability requirements, including:
Hospitals and medical institutions: Uninterrupted power supply for operating rooms, medical equipment and ward areas with ultra-low noise operation.
High-end residential communities and commercial plazas: Backup power for property facilities, elevators and lighting systems without disturbing residents and customers.
Data centers and telecommunications bases: Stable power supply for server rooms and communication equipment, meeting the requirements of continuous operation and low noise.
Medium and small-sized industrial and mining enterprises: Main/backup power for production lines with high environmental requirements for workshops.
Municipal facilities: Power supply for parks, cultural and sports venues and public service facilities in urban central areas.

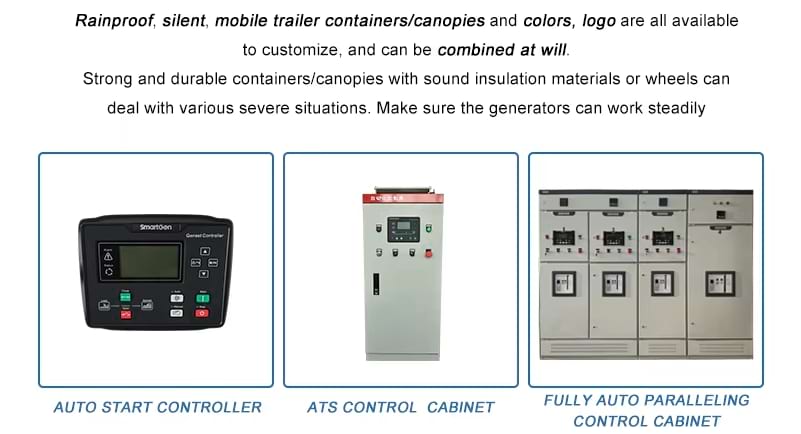

ZEKE Power provides personalized customization for the 200KW Yuchai silent diesel generator set to meet diverse B2B demands:
Voltage and frequency customization according to regional power grid standards;
Customization of rainproof, mobile trailer and container-type enclosures;
Customization of colors, logos and accessory configurations (e.g., additional fuel tanks, remote monitoring modules);
Customization of parallel operation systems for large power demand scenarios.
We offer a one-stop full-lifecycle service system for B2B users:
Pre-sales: Professional technical consultation and power solution design based on user scenarios;
In-sales: On-site installation guidance, commissioning and staff training;
After-sales: 24/7 emergency maintenance, regular equipment inspection, original spare parts supply and long-term technical support.
If you are looking for a high-reliability, ultra-low noise 200KW silent diesel generator set for your enterprise or project, our professional technical team is ready to provide you with a customized solution and detailed quotation. You can contact us via our official inquiry channel, and we will reply to your needs within 24 hours, including product configuration, delivery cycle, after-sales service and bulk purchase discounts. We support global delivery and on-site installation and commissioning, ensuring that the genset is quickly put into operation and creates value for your business.
