| Quantity: | |
|---|---|

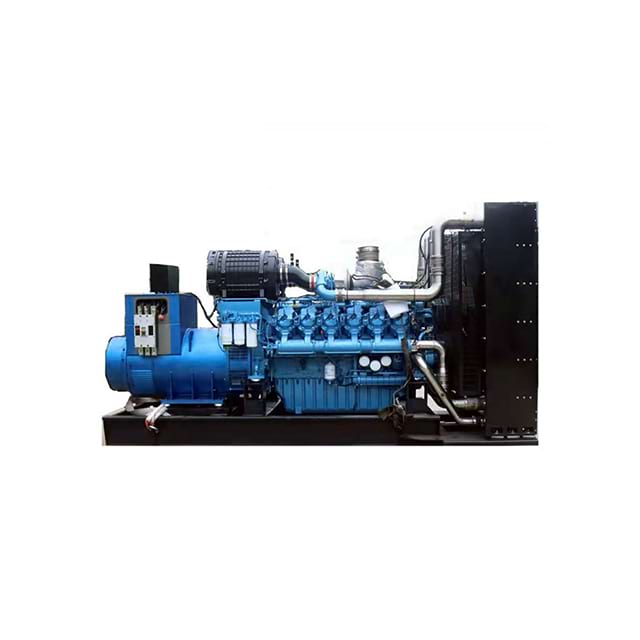

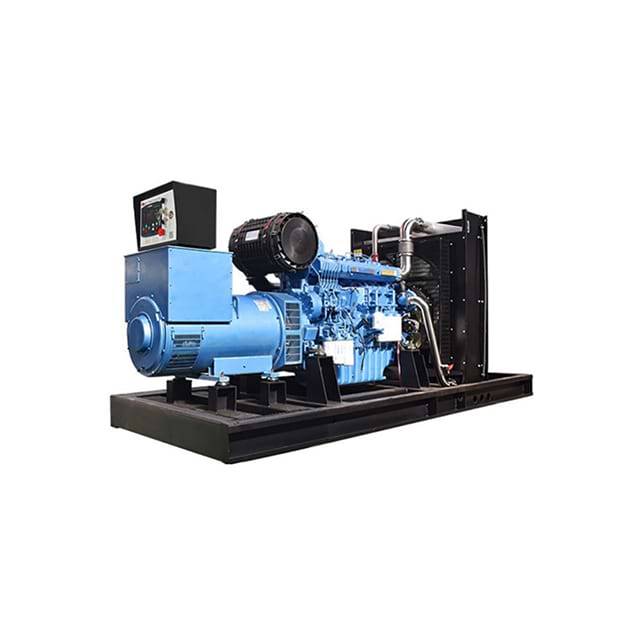

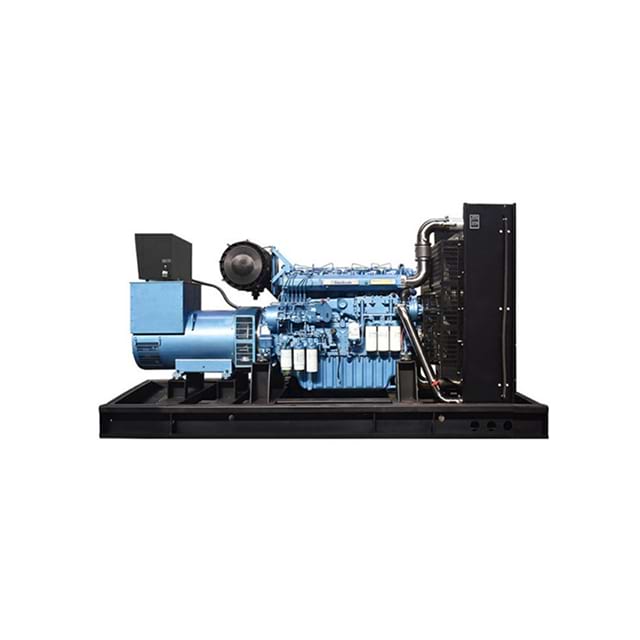

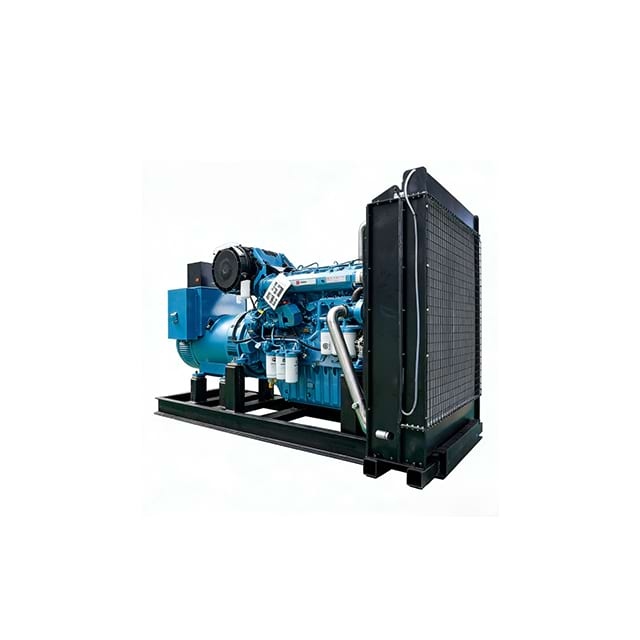

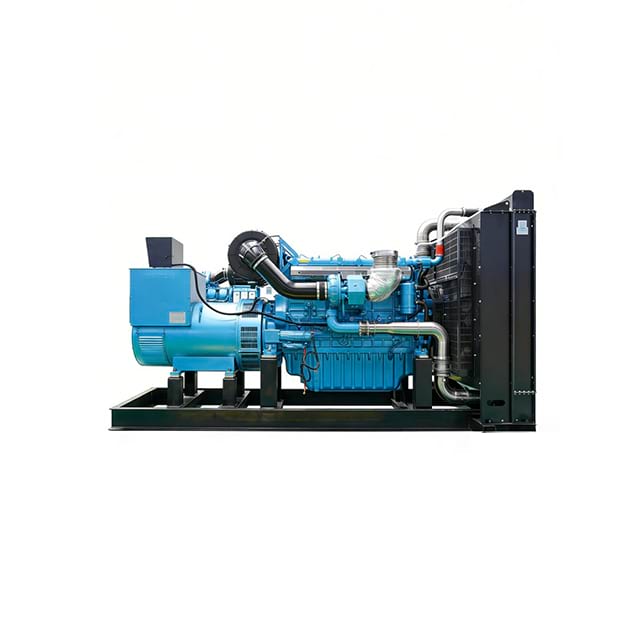

Unit key parameters(as a sample) | |
Power: | 400KW/500KVA |
Rated voltage: | 400V/230V |
Rated current: | 720A |
Rated frequency: | 50Hz |
The factor of rated power: | 0.8 |
The regulating rate of instantaneous voltage: | ≤±15% |
The regulating rate of steady voltage: | ≤±0.5% |
The waving rate of voltage: | ≤0.5% |
Voltage waveform distortion degree: | ≤5% |
The time of steady voltage: | ≤1.5sec |
The regulating rate of steady frequency: | ≤±2% |
The regulating rate of instantaneous frequency: | ≤±5% |
The time of steady frequency: | ≤3sec |
The waving rate of frequency: | ≤±0.5% |
The waste of fuel with full load: | 208g/kw.h |
Size(mm): | 3200*950*1900mm |
Weight(kg): | 3200kg |
The main parameters of the engine | |
Brand: | WeiChai |
Model: | 6M26D447E200 |
Standby power: | 440kw |
Type: | four strokes, waste gas turbine boost,direct spurting type |
Cooling way: | water cooling |
With type: | Inline type |
Bore*Trip: | 127*165mm |
Cylinder: | 6 |
Displacement: | 12.54L |
Speed adjustment way: | Electronic speed governor |
Rotating speed: | 1500rpm/1800rpm |
Starting way: | starting with electricity |
Optional Accessories |
Auto startup control panel |
Automatic control panel(ATS) |
Split type daily fuel tank;Integrated base fuel tank |
Rainproof enclosure;Soundproof enclosure |
Mobile power station |
Mute power station |

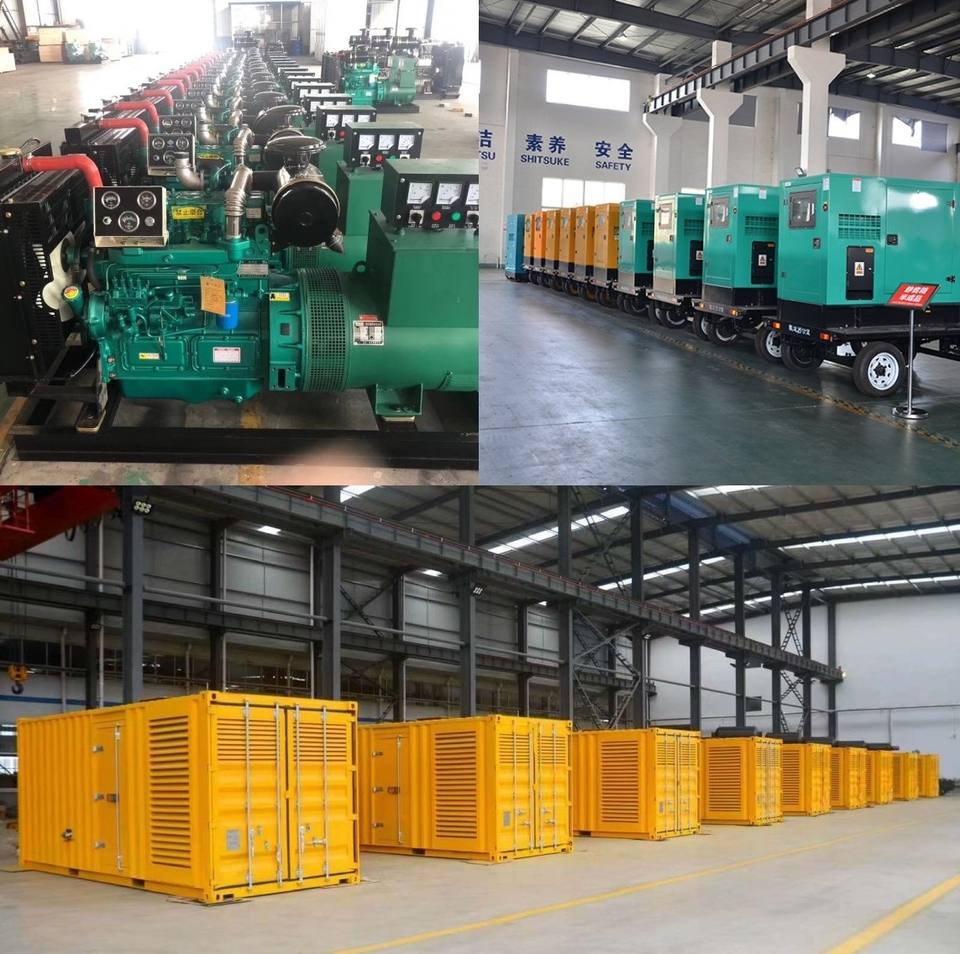

Factory, and our factory is specialized in manufacturing different type generator set that three generations with 30 years of industry experience.
South America, Middle East, South East Asia,Central Asia,Africa, Central Africa, and West Africa,etc.
Standardization of all stages test, We are strict with every step of the production and will test load by loading bank before delivery.
Within 15-20 working days after payment or deposit.
Yes, we offer personalized customization based on customer requirements, welcome.

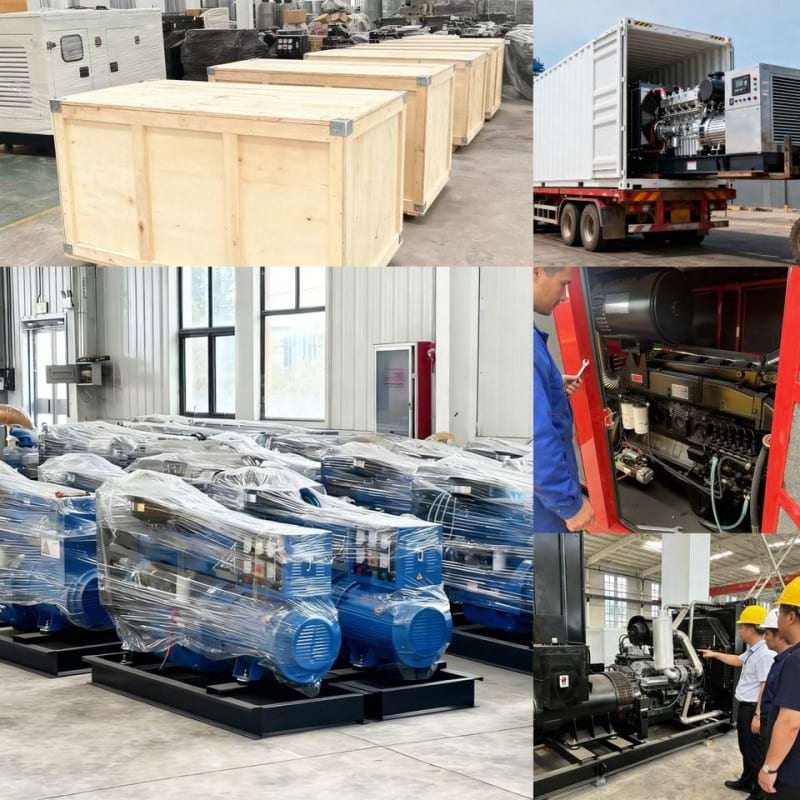

Single item: wooden box with package
Single package size: 350X125X195 cm
Single gross weight: 4200.000 kg
