The ZEKE ZK4T Lighthouse Diesel Generator is the classic series of lighting tower diesel generators from ZEKE Power, engineered for high sturdiness and adaptability to harsh outdoor industrial environments—an ideal power and lighting solution for B-end users with temporary on-site needs. Highlighted by its iconic structural design of double manual winches and a horizontal galvanized mast, this series outperforms conventional lighting towers in stability and operational safety. Equipped with Kubota D1105 3-cylinder water-cooled diesel engines and Mecce-ate LTSN series alternators, it delivers a stable 6KW genset power at 1500/1800rpm. The lighting system supports interchangeable metal halide and LED lamps, with optional power configurations to meet diverse brightness demands. With a maximum working height of 9 meters, 20m/s wind resistance, and a low noise level of 72dB(A) at 7 meters, the ZK4T lighthouse diesel generator combines reliable power supply and efficient lighting, with a minimum order quantity of 1 set, perfectly suiting global engineering, emergency rescue, and resource development projects.

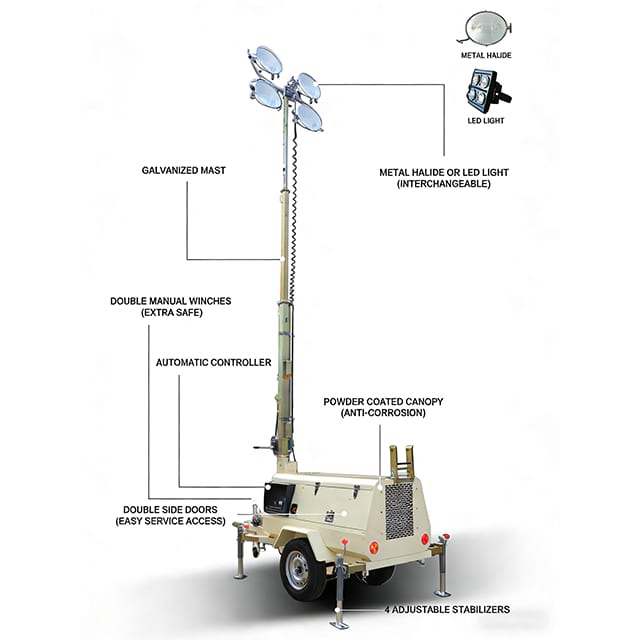

The canopy adopts an 80μm powder coating process and thickened metal plate structure, providing excellent anti-corrosion and protection for internal components, significantly extending service life in high-humidity, dusty, and corrosive environments. Two independent manual winches with self-locking devices are mounted on the tower frame, ensuring safe and convenient mast lifting/extension. Four drawable stabilizing legs with manual jacks and locking pins further enhance stability during full extension. The double-side door design enables easy access to all components, simplifying daily maintenance and reducing downtime for B-end users.
The ZK4T lighthouse diesel generator offers dual lighting options: the ZK4T800 is fitted with 4×1000W regular metal halide lamps (110000 LM/light, oval shape), while the ZK4T600 features 4×400W LED lamps (52000 LM/light, rectangular shape). Customizable 4×300W or 4×500W LED lamps are also available for on-site brightness requirements. The 3-section galvanized mast supports 359° manual rotation (330° lockable) and manual light tilting, enabling 360° all-round lighting coverage without blind spots—ideal for large-scale outdoor work areas.
Powered by the Kubota D1105 naturally aspirated diesel engine (4-cycle, watercooled), the generator ensures stable operation with E-TYCS/direct injection systems and regular emission levels. The 120L rotational moulding plastic fuel tank supports 80 hours of continuous operation with full lights on, eliminating frequent refueling for long-term on-site work. The trailer design features 14" rims with regular tires, a retractable tow bar, and a 2"/50mm ball adapter, with a maximum towing speed of 80km/h. Up to 16 units can be loaded into a 40' high container (with partial component disassembly), drastically reducing international logistics costs for B-end bulk buyers.
 |  |
Category | Parameters | ZK4T800 | ZK4T600 |
Dimensions | Length/Width/Height | 4560/1430/1450mm | 4300/1430/1450mm |
Full Extending Height | 9m | 9m | |
Power Core | Genset Power | 6KW (1500/1800rpm) | 6KW (1500/1800rpm) |
Engine Model | Kubota D1105 | Kubota D1105 | |
Alternator | Mecce-ate LTSN Series | Mecce-ate LTSN Series | |
Lighting & Mast | Light Type/Power | Metal halide,4×1000W | LED,4×400W |
Luminous Flux | 110000 LM/light | 52000 LM/light | |
Mast Rotation | 359° manual (330° lockable) | 359° manual (330° lockable) | |
Trailer & Safety | Stabilizing Legs | 4 drawable bars with manual jacks | 4 drawable bars with manual jacks |
Max Towing Speed | 80km/h | 80km/h | |
Additional Features | Fuel Tank Capacity | 120L | 120L |
Operating Hours (Full Lights) | 80h | 80h | |
Max Wind Resistance | 20m/s | 20m/s | |
Noise Level (7m) | 72dB(A) | 72dB(A) |
The ZK4T galvanized mast lighting tower diesel generator is tailored for B-end users in multiple industries:
Construction sites & Road-bridge repairing works: Temporary all-round lighting for night construction and on-site power supply for small equipment;
Outdoor sports events: Mobile lighting for open-air stadiums and temporary power for event facilities;
Emergency services: Rapid deployment for disaster relief, rescue, and temporary lighting/power in accident sites;

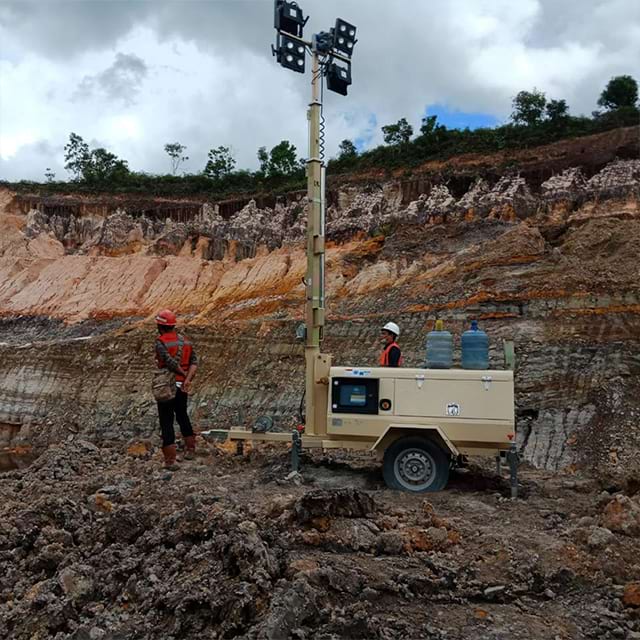

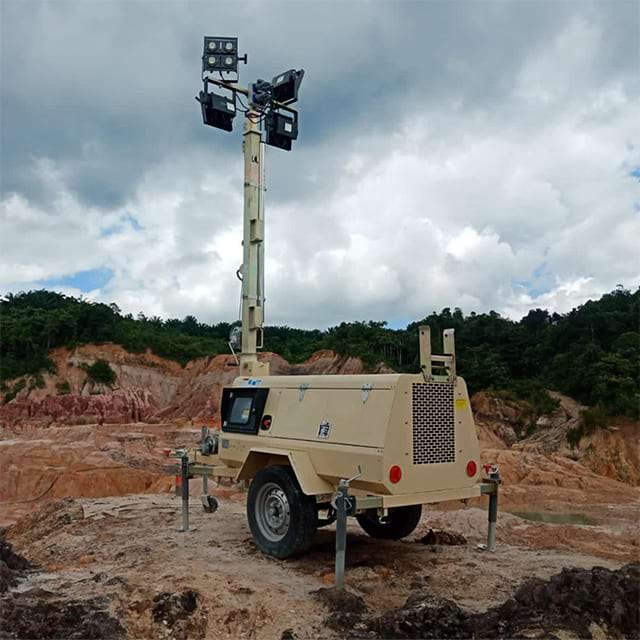

Oil field & mining: Harsh environment-adaptable lighting and power for remote resource development areas.
ZEKE Power offers flexible customization for the ZK4T lighthouse diesel generator, including AL-KO suspension system trailers, orange/red canopy colors, and special tool kits. We provide a global warranty of 12 months from the BL date or 1000 running hours (whichever comes first), covering core components of the engine and alternator. Long-term professional technical consulting services are available for free, with paid on-site maintenance services provided worldwide to solve after-sales problems for B-end users in a timely manner. The payment term is 30% TT as deposit and 70% TT before shipment, supporting secure international trade transactions.
If you are a construction engineering company, emergency equipment supplier, or mining enterprise with temporary outdoor lighting and power needs, submit your on-site requirements (e.g., lighting brightness, working environment, purchase quantity) to our professional team. We will provide a customized solution for the ZEKE ZK4T Lighthouse Diesel Generator within 24 hours, including detailed product configuration, quotation, and international logistics plan. Factory direct sales ensure competitive pricing and on-time delivery, with trade assurance to protect your transaction safety.
