For B2B users in outdoor temporary construction, emergency rescue, and field operations who need integrated power supply + lighting solutions, our ZeKe compact lightweight tower-type diesel generator (ZK9T series) is a cost-effective and portable choice. As ZeKe’s best-selling lighting tower series, this product is renowned globally for its compact structure, dependable performance, and dual-function of power generation and high-brightness lighting. Available in two models (I6N300 and I6N120), it is powered by Kubota water-cooled diesel engines and matched with MecceAlte alternators, with a genset power of 3.0/3.5KW to 6.0/7.5KW (1500/1800rpm). The innovative 9m hot galvanized mast with electric + manual integrated winch enables fast lifting and 359° manual rotation, and it is compatible with metal halide and LED lamps, covering a lighting area of up to 5000 ㎡. With a gross weight of only 850-890kg and a compact transport size, this portable tower-type diesel generator can be easily towed and deployed, making it an indispensable mobile power and lighting equipment for construction sites, road-bridge maintenance, and emergency services.
The unit integrates a small diesel generator and a high-rise lighting tower, realizing one machine for two purposes and saving the cost of separate procurement of power generation and lighting equipment. The I6N300 (4×1000W metal halide lamps) covers 4200 ㎡, and the I6N120 (4×300W LED lamps) covers 5000 ㎡, with high luminous flux and wide coverage to meet the lighting needs of large outdoor sites.
Powered by Japanese Kubota water-cooled diesel engines (D1105 for I6N300, Z482 for I6N120), the unit features 2/3 cylinders, natural aspiration, and 4-cycle combustion, with low fuel consumption and strong adaptability to harsh field environments. Matched with MecceAlte LT3N series alternators (IP23 protection class, H insulation class), it supports 50/60Hz dual frequency and 230/115V AC output, meeting the power demands of different electrical equipment.

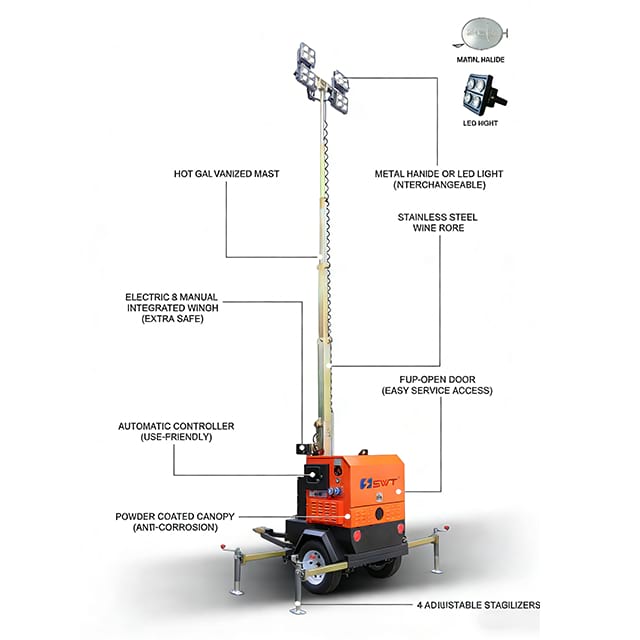

The 6-section hot galvanized mast can be extended up to 9m, with an electric + manual integrated winch design: electric mode can lift the mast in a dozen seconds, and manual mode serves as an emergency backup, ensuring normal use even if the electric system fails. The 359° manual rotation with self-locking function enables flexible adjustment of the lighting angle, and the stainless steel wire rope ensures the safety and durability of the lifting system.

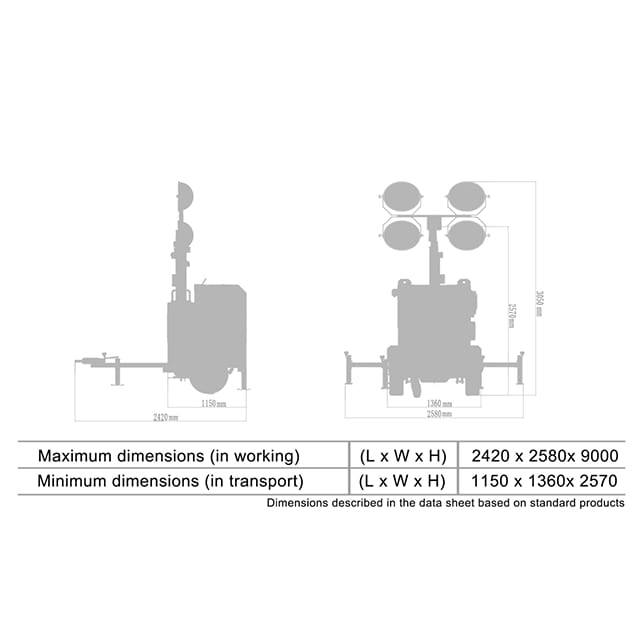

With a transport size of only 1150×1360×2570mm and a towable design (max towing speed 80km/h), the unit can be easily transported by light trucks, and up to 16 units can be loaded on a single truck for bulk transportation, reducing logistics costs for B2B users. Equipped with 4 extensible stabilizing legs with locking pins and 14" Sunrayisa rims with regular tires, it can be quickly fixed and deployed on uneven ground such as construction sites.
The 80μm powder coated canopy has anti-corrosion and noise reduction effects, with an acoustic pressure of only 72dB(A) at 7 meters away, reducing noise pollution in outdoor operations. The 100L single-deck iron fuel tank supports 62-142 hours of full-load operation, avoiding frequent refueling; the HGM1790 controller with LCD display and emergency stop button realizes simple and safe operation, and each light is equipped with an independent circuit breaker for fault protection.
Parameter | I6N300 | I6N120 |
Overall Dimension (L×W×H) | 2420×1360×3050mm | 2420×1360×3050mm |
Transport Height | 2570mm | 2570mm |
Full Extending Mast Height | 9m | 9m |
Genset Power (1500/1800rpm) | 6.0/7.5KW | 3.0/3.5KW |
Gross Weight | 850kg | 890kg |
Engine Model | Kubota D1105 | Kubota Z482 |
Cylinder Number | 3 | 2 |
Engine Type | 4 cycles, Water-cooled diesel | 4 cycles, Water-cooled diesel |
Alternator Model | MecceAlte LT3N-130/4 | MecceAlte LT3N-75/4 |
Frequency | 50/60Hz | 50/60Hz |
Rating Voltage (50Hz) | 230/115V AC | 230/115V AC |
Light Type | Metal halide | LED |
Light Configuration | 4×1000W | 4×300W (up to 320W) |
Luminous Flux | 11000 LM/light | 39000 LM/light |
Fuel Tank Capacity | 100L | 100L |
Full-Load Operating Hours | 62h | 142h |
Max Towing Speed | 80km/h | 80km/h |
Acoustic Pressure | 72dB(A) @7m | 72dB(A) @7m |
 |  |
This portable lighting tower diesel generator is specially designed for outdoor temporary B2B scenarios, and its main applications include:
① Construction sites/road-bridge repairing works: for night construction power supply and large-area lighting of construction sites;
② Emergency services/disaster relief: rapid deployment for power supply and lighting in disaster-stricken areas with power outages;
③ Oil field & mining: field operation power supply and lighting for remote mining areas and oil fields;
④ Outdoor sports/large events: temporary power supply and lighting for open-air sports events and cultural activities;
⑤ Highway maintenance/municipal engineering: mobile power and lighting for road maintenance and emergency repair at night.
We offer targeted customization for ZeKe compact lightweight tower-type diesel generator to meet the personalized needs of B2B users: optional removable centre lifting point for easy hoisting, additional auxiliary power outputs for more electrical equipment connection, and special tool kits for on-site maintenance. For full-lifecycle services, the product enjoys a global warranty of 12 months from BL date or 1000 running hours (whichever comes first). Our professional after-sales team provides long-term free technical consulting services, and paid on-site maintenance services in various regions to solve the operation and maintenance problems of users in a timely manner. We also support OEM/ODM services for bulk purchase users, including customized logo and panel design.
Our ZeKe tower-type diesel generator (ZK9T series) has an MOQ of 1 set, suitable for small and medium-sized construction enterprises, emergency rescue teams, and bulk procurement of engineering companies. We adopt the payment term of 30% TT as deposit and 70% TT before shipment, which is safe and reliable for B2B transactions. You can click "Inquire" to submit your procurement demand (including model selection, customization requirements, and purchase quantity), and our sales team will provide a detailed customized quotation and logistics plan within 24 working hours. We also support sample testing for new users to ensure that the product meets your actual application needs.
