Our diesel generator sets utilize Caterpillar industrial-grade diesel engines, designed for high power output and continuous operation under harsh conditions. The units feature a compact design and stable operation, providing reliable power continuously under high load conditions. They are widely applicable to industrial, engineering, and critical backup power systems.
With a mature power system and reliable overall integration solution, it can provide power capacities ranging from 7.5kw to 2600kw, making it an ideal choice for projects with extremely high requirements for power stability and safety.
Cooling system type | Water-cooling system | Rated current | Dependent on voltage |
Rated voltage | 110 volts to 480 volts | Starting system | Automatic start, 20v DC start, remote start |
Origin | Shenzhen, China | Noise level | ≤ 110Db/A |
Brand name | Zeke | Engine brand | Caterpillar |
Rated power | 1460KW/1825KVA | Installation method | Fixed |
Main power | 1600KW/2000KVA | Generator type | Self-starting diesel generator |
Frequency | 50/60Hz | Options | Automatic transfer switch, rainproof cover, remote control, soundproof box |
Protection functions | Automatic voltage regulation, under-voltage protection | Speed | 1500/1800rpm |
Type | Silent type, container type | Weight (kg) | 15375 |
Warranty period | One year or 1000 operating hours, whichever comes first | Dimensions (mm) | 5909*2286*2342 |
Caterpillar Original Power
Equipped with the original Caterpillar 16V 69L engine, it adopts a high-pressure common rail fuel system and precise electronic speed control technology, with a fuel consumption rate as low as 210g/kWh. Even under high power output, it still maintains excellent fuel economy.
Highly stable output
The unit operates smoothly, with precise voltage and frequency control. It is equipped with a Lillenschmidt or Stanford brushless three-phase AC synchronous generator, along with a digital AVR automatic voltage regulation system. This enables it to precisely adapt to loads with extremely high requirements for power quality, such as precision processing equipment, server clusters, and large compressors.
Heavy industrial structure design
The total weight of the unit is 15,375 kg. With the help of a thickened steel base and an optimized center of gravity layout, the vibration during operation is extremely small, and it can be directly fixed to the foundation of the indoor machine room.
Easy maintenance design
The engine and key systems are well-arranged. The size of 5909×2860×2342mm takes into account both functionality and site compatibility. The open structure allows for the replacement of three filters, oil testing, and circuit maintenance without the need to remove the outer cover. Combined with the reserved maintenance passage, it significantly improves the maintenance efficiency and reduces labor costs.
Strong ability to adapt to the environment
It can operate stably under harsh conditions such as high temperatures and dusty environments. At an altitude of 3000 meters, the power retention rate still reaches 98%. It can withstand extreme environmental temperatures ranging from -15℃ to 45℃. In winter, it can be paired with a water jacket heater to achieve rapid low-temperature startup. In summer, it ensures stable operation under high temperatures through an efficient heat dissipation module.

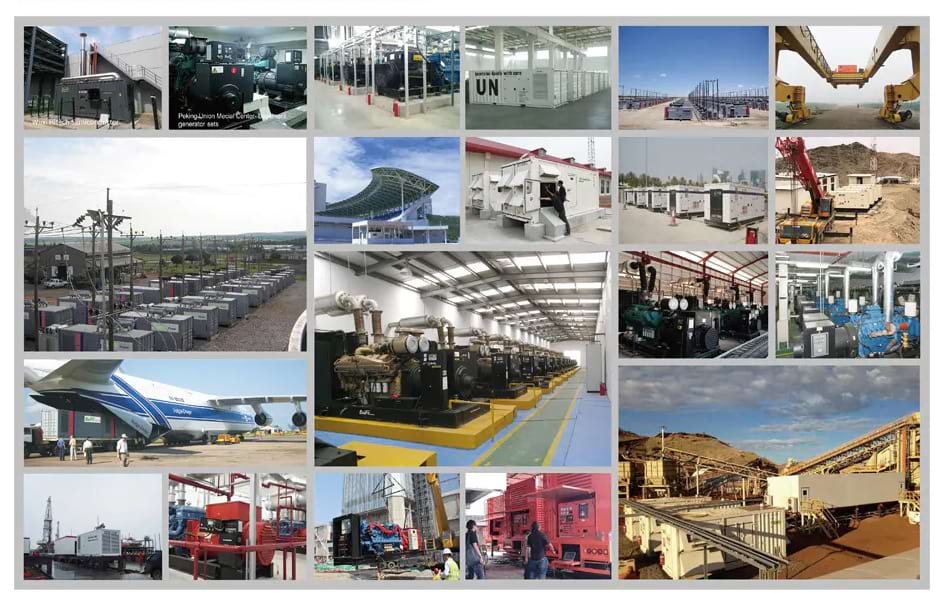

Industrial manufacturing plants: Main or backup power supply to ensure continuous production.
Mining and oil and gas projects: Suitable for high-load and 24/7 operation requirements.
Large-scale construction sites: Provide stable power supply for construction and equipment
Data centers and communication facilities: Backup power supply for critical loads.
Infrastructure projects: Airports, ports, hospitals and public facilities.
One-year warranty or 1000 operating hours (whichever comes first) starting from the installation date.
Yes, most of our products like Cummins, Caterpillar power generator enjoy the globa warrany service, so you do not need to worry about the aftersales service.
Yes, we can accept OEM.
We can accept T/T 30% in advance, and the balance 70%s shall be paid before shipmentor L/C at sight L/C deferred payment terms or west union.
Our normal delivery time is 25 working days after receive your deposit.
