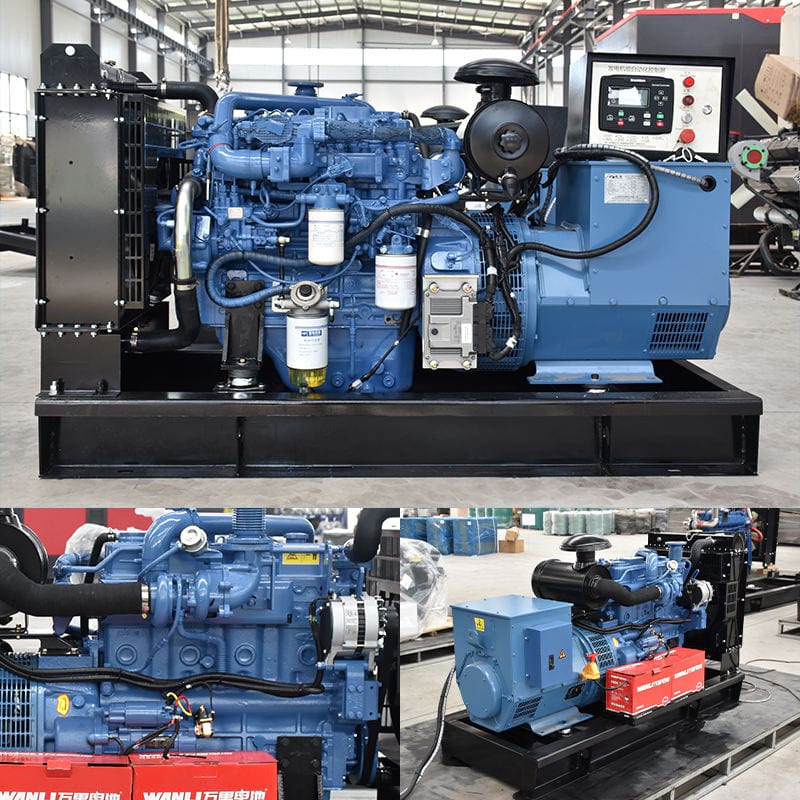

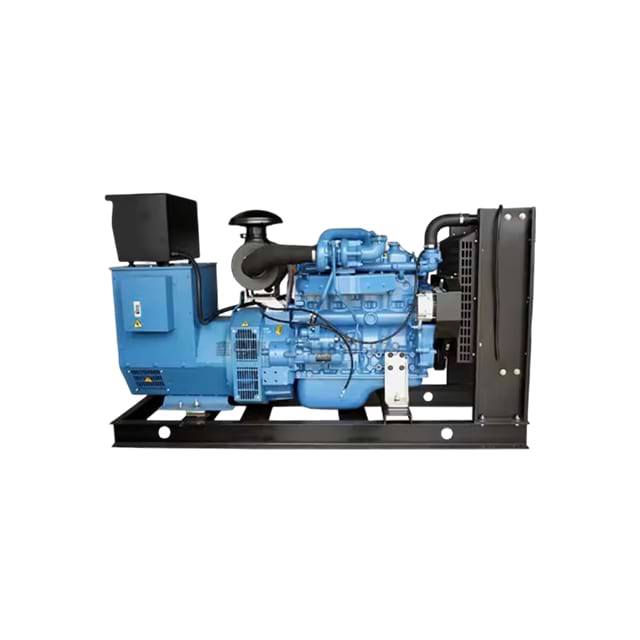

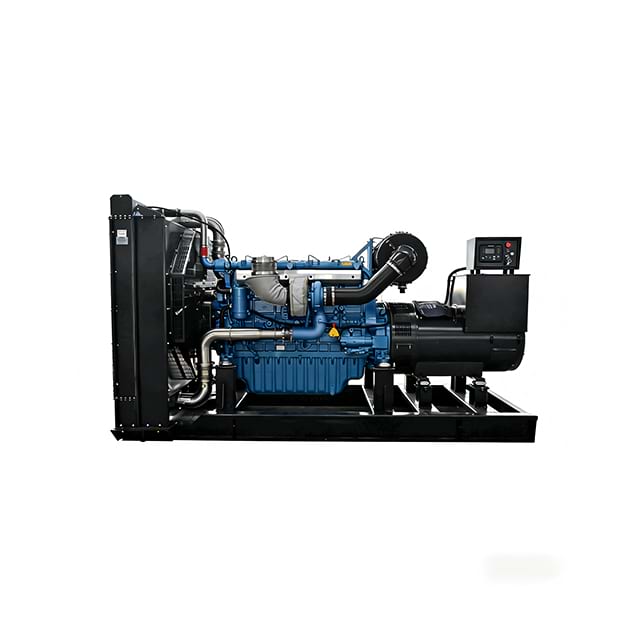

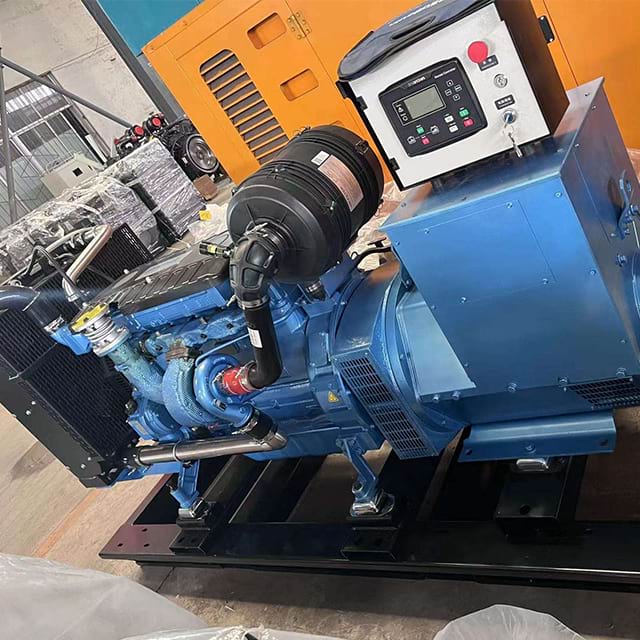

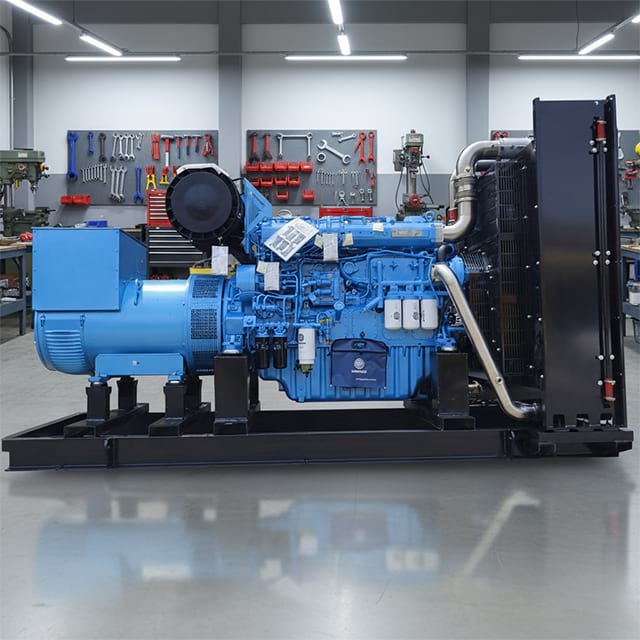

This series of generator sets is a high-power density, all-condition adaptable power solution launched by Weichai Power for global mid-to-high-end industrial, commercial, and infrastructure sectors. The core power utilizes Weichai's fourth-generation high-pressure common rail technology engines (WP4.1/WP6/WP10 series), with a standby power range covering 80-300kW and a prime power rating of 100-375kVA. The sets are designed in strict accordance with ISO 8528-5 and GB/T 2820-2009 international standards, natively compliant with EPA Tier 3, EU Stage IIIA, and China Non-Road Stage III emission standards, enabling seamless entry into major global markets like Southeast Asia, Africa, the Middle East, and Latin America without modification.
Through modular integrated design and the application of lightweight materials, the unit weight is controlled between 950-4200kg, with a minimum size of only 2900x1150x1650mm. They support three deployment modes: fixed installation, trailer mobility, and containerized configuration, adapting to diverse scenarios such as small and medium-sized equipment rooms, outdoor construction sites, and data center backup power rooms.
Basic attributes | |||
Product Name | Diesel generator set | Engine type | Straight-line (L-shaped), V-shaped, turbocharged intercooled diesel engines |
Type | Silent type, ultra-silent type, open type, containerized type, lighthouse type, trailer type | Cooling method | Closed water-circulation cooling |
Starting method | DC24V direct electric starting (maintenance-free lead-acid battery) | Intake method | Turbocharging + intercooling |
Generator type | Brushless three-phase AC synchronous generator | Fuel system | PT fuel system (precise fuel supply, complete combustion) |
Rated voltage | 400/230V / (or according to customer requirements) | Speed | 1500/1800rpm |
Rated frequency | 50Hz/60Hz | Phase number | Single-phase / three-phase |
Power factor | 0.8 (lagging) | Fuel consumption rate (100% load) | ≤205g/kW·h |
Insulation class | H class | Noise (LP7m) | ≤100dB(A) |
Voltage regulation method | AVR automatic voltage regulation (steady-state voltage regulation rate ≤±1%) | Controller | Deep Sea, ComAp, Fuchuang |
Warranty period | 1 year or 1000 hours | Fuel tank | 8-10 hours |
Protection function | Overload protection, low oil level shutdown, reverse power protection | Place of origin | Shenzhen, China |
Supercritical Combustion Efficiency: Equipped with a 200MPa high-pressure common rail system, supporting 5-stage precise regulation (pre-injection, main injection, post-injection). Fuel atomization particle size ≤8μm, combustion efficiency increased by 19%. Minimum fuel consumption under rated conditions as low as 172g/kW·h (WP10 series), saving over 30% fuel compared to similar products.
Full Lifecycle Cost Advantage: Utilizes high-strength alloy cast iron cylinder block + forged steel crankshaft. Passed 1000-hour endurance test and 500-hour thermal shock test. Mean Time Between Failures (MTBF) ≥2500 hours, major overhaul interval up to 8000 hours. Operation and maintenance costs are 40% lower than competitors.
Dynamic Response Performance: Taking the WP10 series as an example, peak torque at 1000 rpm reaches 1200N·m, free acceleration time is only 1.2 seconds, enabling instant driving of high-inertia loads like air compressors and crushers, suitable for complex working conditions in mining and construction.
Environmental Dimension | Technical Solution | Performance Improvement |
Low-Temperature Start | Intake air preheater + Low-temperature electronic control system | Starts within 8 seconds at -25°C |
High-Temperature Tolerance | 45°C copper water tank + Closed water circulation cooling system | Power retention rate ≥95% |
High-Altitude Adaptation | Three-stage turbocharger + High-altitude calibration | Power loss only 5%-7% at 4100m altitude |
Dust & Sand Protection | Three-stage 93% efficient dust filter + Fuel line self-cleaning system | Fuel line clogging failure rate reduced by 80% |
Fuel Compatibility | Two-stage fuel filtration + Water-separating fuel filter | Compatible with #0 diesel and low-quality fuels |
Voltage Regulation Accuracy: Matched with Weichai OEM brushless three-phase AC synchronous generator, equipped with an AVR automatic voltage regulation system. Steady-state voltage regulation rate ≤±0.5%, voltage fluctuation rate ≤0.3%, suitable for sensitive loads like data centers and medical equipment.
Multiple Safety Protections: Integrates six protection functions: low oil pressure, high water temperature, overload, under-voltage, phase loss, and short circuit. Supports ATS automatic switching (power restored within 10 seconds of mains failure). Automatic alarm and emergency shutdown upon fault detection.
Intelligent Early Warning System: Dual-backup ECU control modules (fault switchover time ≤0.2 seconds), equipped with vibration spectrum analysis fault early warning system. Fuel injector fault prediction accuracy reaches 92%, reducing overseas maintenance complexity.
The full series has passed certifications including CE, ISO 9001, SONCAP (Nigeria), SABS (South Africa), meeting European and American environmental standards and emerging market access requirements. Weichai engine particulate emissions are reduced by 80%, complying with EU Stage IIIA standards without the need for additional after-treatment devices, significantly reducing customer compliance costs.
Power Segment | Core Engine | Key Technical Advantages | Typical Application Scenarios |
80-150kW | WP4.1/WP6 Series | Low noise (≤95dB), compact design, easy parallel expansion | Factory backup in Southeast Asia, agricultural processing in Latin America |
150-220kW | WP6/WP10 Series | High torque (1200N·m), enhanced high-altitude adaptability | Mining in Africa, infrastructure in the Middle East |
220-300kW | WP10 Series | Long service life (8000h major overhaul), intelligent early warning system | Data centers, oil field camps |
Southeast Asia Market: 80-150kW models adapted for humid climates, IP23 protection + anti-corrosion coating, support multi-unit parallel expansion to meet peak factory production electricity demand.
Africa Market: 100-200kW models equipped with three-stage dust filters, fuel line self-cleaning system reduces maintenance frequency, local parts centers provide 24-hour response.
Middle East Market: 150-300kW models feature reinforced heat dissipation and sealing design, trailer-mounted deployment suits mobile desert scenarios, stably powering drills and communication equipment.
Latin America Market: Compliant with EPA Tier 3 emissions, supports ATS remote monitoring, compact design fits limited equipment room space, reduces energy consumption for agricultural product processing.
Service Network: Authorized service outlets in 120+ countries, response time in remote areas ≤72 hours. Service teams certified by Weichai OEM.
Parts Supply: 15 parts centers in core markets like Africa and Southeast Asia. Spot parts delivery cycle ≤5 days, avoiding equipment downtime losses.
Training System: Multi-language operation manuals + video tutorials, providing on-site training to ensure overseas users quickly master operation and maintenance skills.
Warranty Policy: Standard warranty: 1 year or 1500 operating hours for the complete unit. Extended warranty for engine core components (cylinder block, crankshaft, camshaft) up to 2 years.
