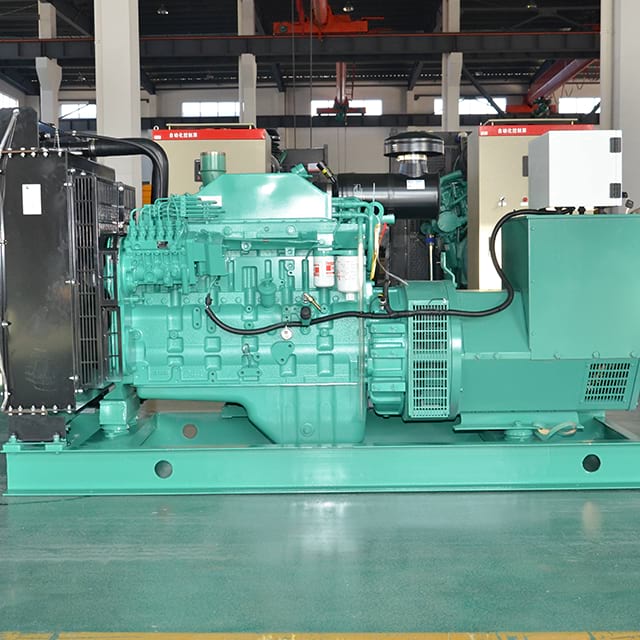

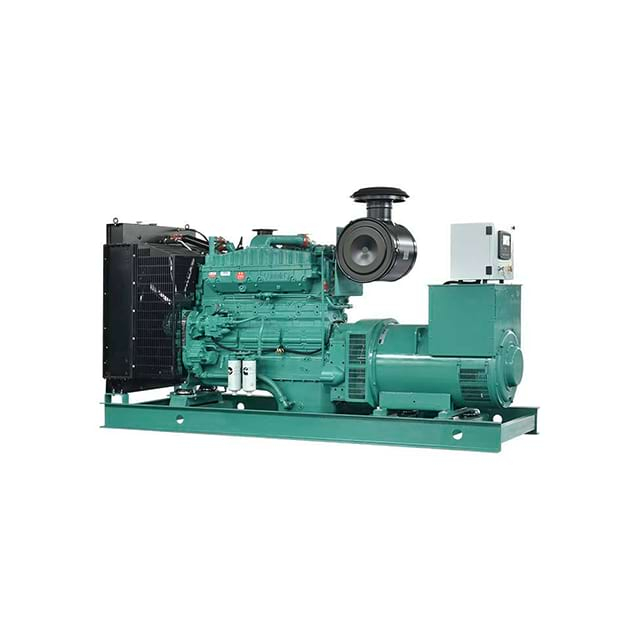

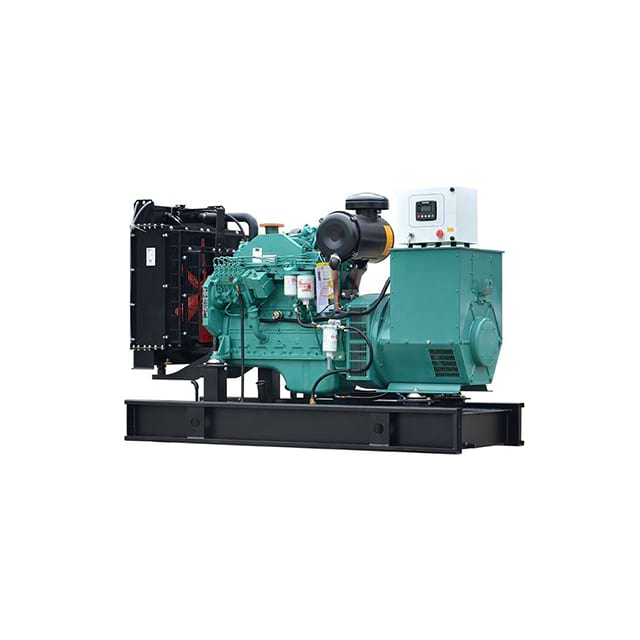

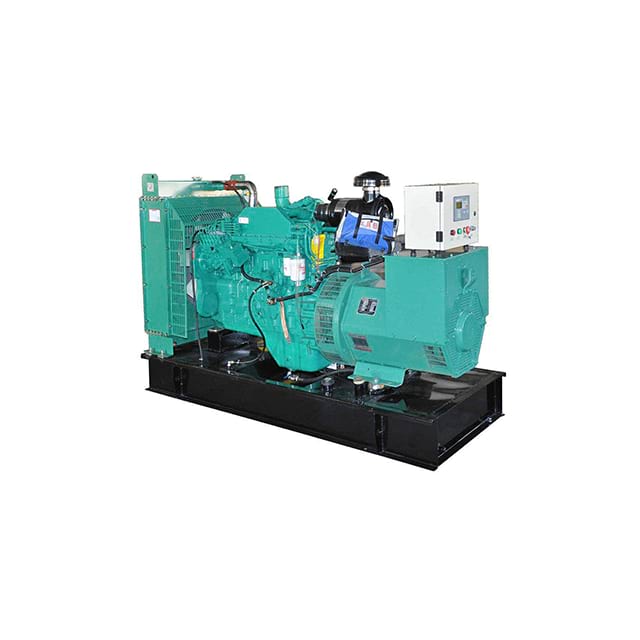

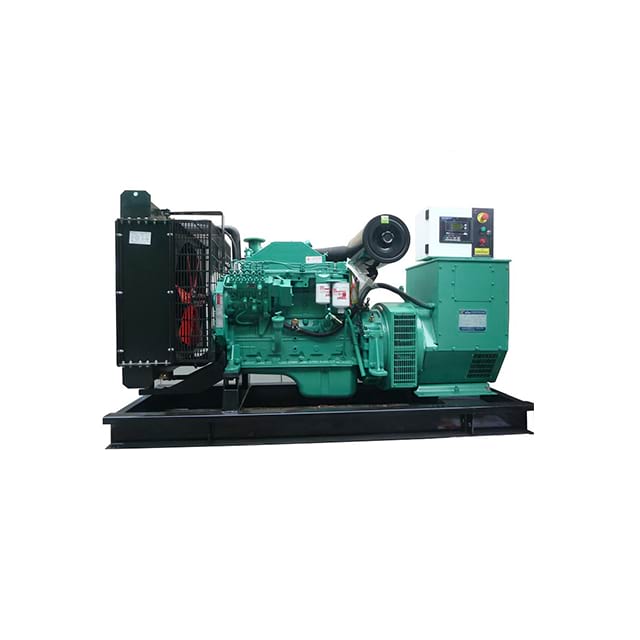

10-50KW Diesel Generator Set With Cummins Engine

This series of small-power diesel generator sets powered by Cummins covers a prime power range of 10-50kW and a standby power range of 12.5-63kVA. The core power is equipped with Cummins' classic B-series engines (representative models: 4B3.9-G11, 4B3.9-G2), which are high-reliability power supply solutions specially designed for global small-scale power demand scenarios. The generator sets are designed and manufactured in accordance with international standards such as ISO8528-2005 and GB/T2820-2009, fully complying with international emission requirements like EPA Tier 4 and EU Stage V, and meeting the access standards of major global markets including Europe, America, Southeast Asia, and Africa.

The whole machine supports multiple installation methods such as wall mounting, ground fixing, and trailer movement. With an ultra-low fuel consumption rate of 216g/kW·h, a major overhaul cycle of 6000 hours, and the ability to start quickly at ultra-low temperatures of minus 30°C, it can be widely used to meet the needs of various working conditions such as backup power supply and small-scale constant load. It is the preferred power equipment for overseas small-scale commercial, agricultural, outdoor construction and other scenarios.

Core Selling Points

• Original Cummins power, extremely reliable and durable

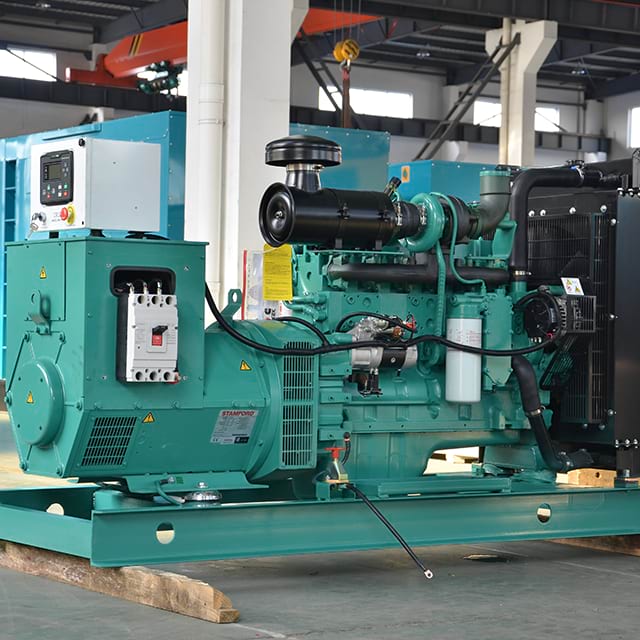

  It is equipped with a Cummins 4B3.9 series inline 4-cylinder engine, featuring a forged steel camshaft, a high-strength alloy cast iron cylinder block, and a platform cross-hatch honed cylinder liner design. This effectively prevents oil leakage and offers excellent high-pressure resistance and impact resistance. It is equipped with a Holset exhaust gas bypass valve and a rotor high-pressure fuel pump, ensuring stable power output and sufficient fuel atomization. The fuel consumption rate is as low as 216g/kW·h under 100% load, balancing power and fuel efficiency.

• Adaptability to all working conditions, unaffected by extreme conditions

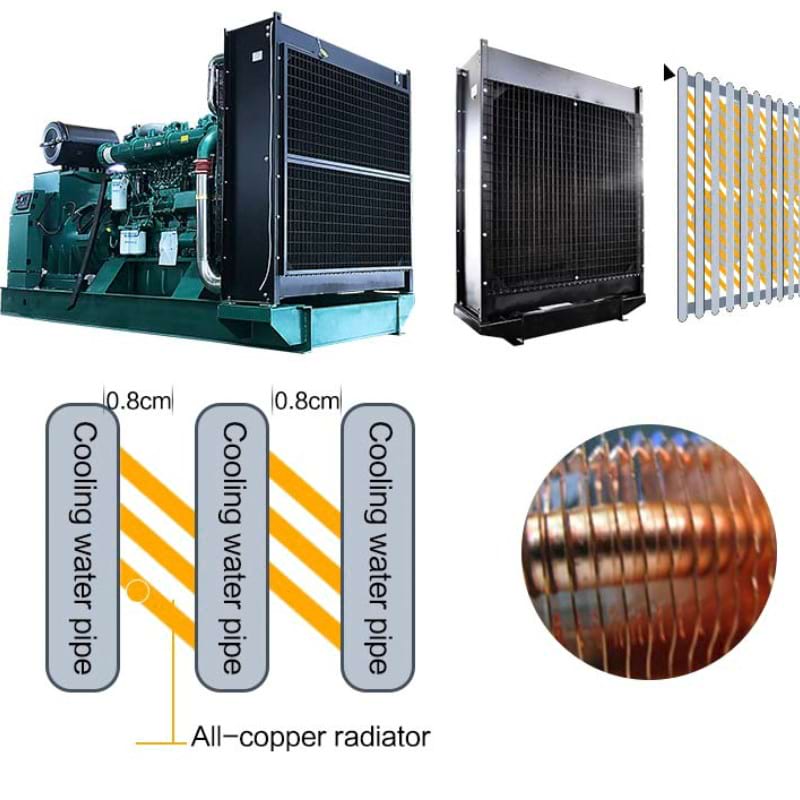

  Optimized design for climate characteristics of different global regions: It can start quickly within 5 seconds in a low-temperature environment of -30℃, meeting the needs of cold regions such as Northern Europe and Central Asia; the closed water circulation cooling system combined with a high-efficiency radiator enables continuous and stable operation in a high-temperature environment of 45℃, suitable for high-temperature regions such as the Middle East and Africa; the overall protection level reaches IP23, with moisture-proof, dust-proof and salt spray-proof capabilities, applicable to humid working conditions in coastal areas of Southeast Asia and mining dust environments.

• Compact and flexible design, easy to install, operate and maintain

  It adopts an integrated "one-piece multi-functional" structure, eliminating redundant connectors. The minimum size of the unit is only 1800×800×1200mm, which can be directly embedded in a small machine room or wall-mounted, greatly saving space. The accessories are universally used worldwide and easy to obtain, and the maintenance cost is 30% lower than that of similar products. It supports DC24V maintenance-free lead-acid battery electric start, with a simple operation process, and start-stop operations can be completed without professional personnel.

• Precise power control + multiple protections for worry-free power supply safety

  It is equipped with a Stanford brushless three-phase AC synchronous generator and an AVR automatic voltage regulation system. The steady-state electricity \(Compression adjustment rate ≤\pm 1 \%\), \(Voltage fluctuation rate ≤0.5 \%\) can accurately adapt to loads with strict requirements on power supply quality, such as precision instruments, medical equipment, and small production lines. It has a built-in intelligent control system, integrating five protection functions: low oil pressure, high water temperature, overload, undervoltage, and phase loss, which can automatically alarm and emergency stop; it supports the ATS automatic switching device, which can complete the power supply switching within 15 seconds after the mains power is interrupted, realizing unattended operation.

• Complete international certifications for unimpeded access to global markets

  The entire series has obtained authoritative certifications such as CE, ISO9001, EPA Tier 4, and EU Stage V, allowing access to mainstream European and American markets without additional modifications. It meets the import standards of emerging markets such as Southeast Asia and Africa, with convenient customs clearance procedures. A 1-year or 1000 operating hours warranty for the entire machine is provided, covering core components of the engine, generator, and control system.

Analysis of Core Application Scenarios and Demands of Overseas Customers

1. Southeast Asian market: rigid demand) in commerce and agriculture, with an emphasis on portability and moisture resistance

Core users: auto repair shops, agricultural machinery repair points, rural small supermarkets, seafood refrigeration stalls

Pain points: Unstable power grid, frequent power outages cause lifts to stop and refrigeration equipment to fail, resulting in an average daily loss of more than 200 US dollars due to work stoppages; humidity during the rainy season makes equipment prone to moisture-related malfunctions; small businesses have limited budgets and are sensitive to logistics costs.

Unit value: 10-30kW. The model is compact and can be delivered in batches by land (arriving directly in 5-7 days, with freight costs 64% lower than air freight); IP23 protection rating + moisture-proof coating design to resist moisture intrusion during the rainy season; low fuel consumption feature reduces daily operating costs, suitable for the continuous operation needs of small businesses.

2. African Market: Ensuring Livelihood and Infrastructure, Focusing on Durability and Easy Maintenance

Core users: rural clinics, small mining camps, irrigation pump stations, community lighting

Pain points in demand: Insufficient power grid coverage in remote areas, requiring continuous power supply for medical equipment and irrigation systems; poor fuel quality, which easily causes carbon deposition and failures in equipment; shortage of professional operation and maintenance personnel, and long procurement cycles for spare parts.

Unit value: 20-50kW models are compatible with low-quality diesel and equipped with dry air filters to resist sand and dust; the engine has a long overhaul cycle, reducing the frequency of shutdowns for maintenance; parts are universally used worldwide, and local service outlets in Africa can respond quickly; they can directly drive water pumps and lighting systems to ensure agricultural irrigation and people's livelihood electricity.

3. European and American markets: mainly for emergency backup, focusing on environmental protection and quietness

Core users: family villas, small shops, data sub-room, laboratories

Pain points: Power grid interruptions caused by extreme weather, requiring protection of critical loads such as security systems, refrigerators, and servers; strict requirements on emissions and noise; pursuit of automated operation and maintenance.

Unit value: 10-30kW models meet EPA Tier 4/EU Stage V emission standards, with a noise level of \(≤95 ~dB\) (standard muffler included); support ATS automatic switching + remote monitoring, automatically start after a mains power failure without manual intervention; compact design allows installation in basements or garages without occupying living space.

4. Middle East Market: Outdoor construction is a rigid demand, with a focus on high temperature resistance and stability

Core users: Small construction sites in desert areas, oil exploration camps, temporary communication base stations

Pain points of demand: High temperature (above 45℃) and frequent sand and dust weather, which make equipment prone to overheating and shutdown; strong mobility of construction sites requires quick transfer and deployment.

Unit Value: The 30-50kW model is equipped with an enhanced heat dissipation system, with a power retention rate of 95% in high-temperature environments; the trailer-mounted design can be moved with the construction team; the anti-dust filter and sealed junction box are adapted to harsh desert working conditions, ensuring continuous power supply for drilling rigs and communication equipment.

Technical Parameter

Global After-sales Service Guarantee

• Service Network: Relying on more than 5,000 authorized service outlets of Cummins worldwide, covering over 190 countries and regions, overseas customers can enjoy 24-hour technical support and on-site maintenance services.

• Spare parts supply: Spare parts centers have been set up in key markets such as Europe, America, Southeast Asia, and Africa, with spot supply of commonly used accessories. Remote areas \(District delivery cycle≤7 day\)

• Training support: Provide free operation and maintenance training for overseas distributors and users to lower the threshold for operation and maintenance.

• Warranty Policy: The whole machine comes with a 1-year or 1,000 operating hours warranty, and the warranty for core components of the engine can be extended to 2 years, significantly reducing the user's operational risks.

FAQ

1. How to determine the appropriate power rating for my application?

Calculate your total load requirements and add a 20-30% safety margin. Consider both continuous (prime) and standby power needs.

2. Can the generator output multiple voltages?

Yes, most models support adjustable voltage (e.g., 380V/400V/415V) and frequency (50Hz/60Hz).

3. What engine brands do you offer?

We partner with leading brands like Perkins, Cummins, MTU, and Volvo, ensuring reliability and efficiency.

4. What is the generator noise levels?

Optional silent canopies reduce noise to ≤75dB(A) at 1m, super silent type canopies reduce noise to 60dB(A) at 1m, compliant with environmental regulations.

5. What starting methods are available?

Standard electric start with battery backup. Optional remote start and auto-start modules available.

6. Can multiple generators be paralleled?

Yes, with synchronization control panels for load sharing and redundancy.

7. What's the operating temperature range?

-10°C to 40°C. Special cold-start kits for low temperatures and radiator upgrades for high temperatures.

8. How often does maintenance need to be performed?

Routine checks every 200 hours; major service every 1000-2000 hours (engine dependent).
